IC

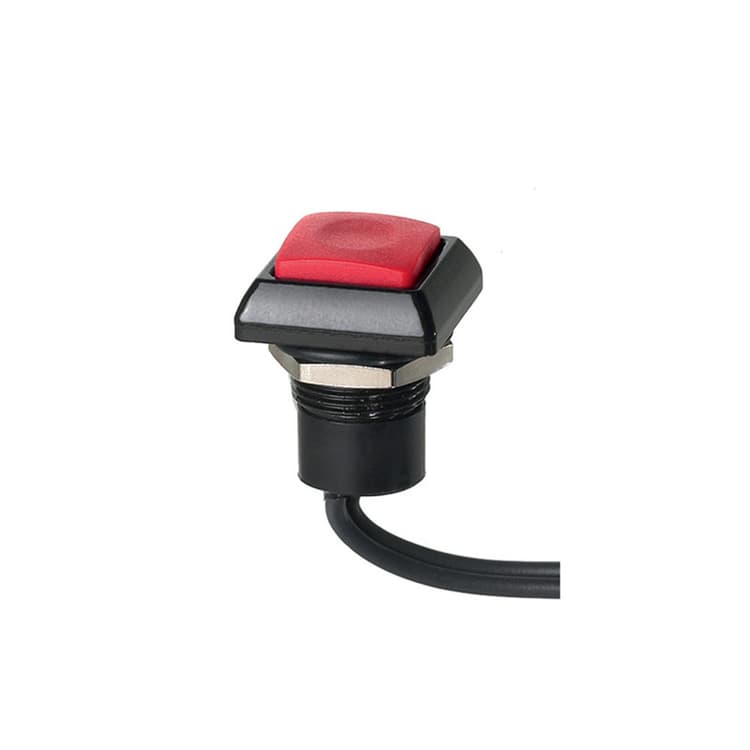

The IC series is a range of momentary pushbutton switches for harsh environments with short case for reduced behind-panel depth.Easier integration even in the tightest spaces.

Main features

  • Short case for tight space requirements
  • Metal bushing dia.12 mm
  • Non-illuminated
  • Tactile feedback
  • Square or round actuator
  • Glossy actuator option (round curved only)
  • Gold plated silver contacts
  • Sealed to IP67
Product detail
Product detail

Key Features

• Panel thickness: 1.5 mm (.059) min. 4 mm (.157 max.) • Total travel: 1.7 mm (.067)+/- 0.3 mm • Typical operating force: 4 N +/- 2 N • Low level or mechanical life: 1,000,000 cycles • Torque: 1,5 Nm max. applied to nut • Soldering: 320 °C max. for 3 sec
196 Products
Filters
  1. image placeholder
    IC
    ICP3Z1AD1104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Quick Connect
    • Actuator Colors: Blue
  2. image placeholder
    IC
    ICC3FAD1
    • Mounting: Flying Leads
    • Actuator Colors: Blue
    • Contact Materials: Silver (Gold-Plated)
  3. image placeholder
    IC
    ICB3Z1AD9100
    • Options: Satin Chrome Bezel
    • Mounting: Quick Connect
    • Actuator Colors: Orange
  4. image placeholder
    IC
    ICB3PAD1101
    • Options: Bright Chrome Bezel
    • Mounting: Straight PC
    • Actuator Colors: Blue
  5. image placeholder
    IC
    ICR3Z14101
    • Options: Bright Chrome Bezel
    • Mounting: Quick Connect
    • Actuator Colors: Gray
  6. image placeholder
    IC
    ICR3PAD8101
    • Options: Bright Chrome Bezel
    • Mounting: Straight PC
    • Actuator Colors: Bright Chrome
  7. image placeholder
    IC
    ICC3PAD7/1100
    • Options: Satin Chrome Bezel
    • Mounting: Straight PC
    • Actuator Colors: White
  8. image placeholder
    IC
    ICB3Z1AD3100
    • Options: Satin Chrome Bezel
    • Mounting: Quick Connect
    • Actuator Colors: Green
  9. image placeholder
    IC
    ICP3SADA104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Solder Lug
    • Actuator Colors: Satin Chrome
  10. image placeholder
    IC
    ICP3PAD5100
    • Options: Satin Chrome Bezel
    • Mounting: Straight PC
    • Actuator Colors: Yellow
  11. image placeholder
    IC
    ICP3PAD1104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Straight PC
    • Actuator Colors: Blue
  12. image placeholder
    IC
    ICC3PAD2104
    • Options: High Actuator Round Model Only - Except with Gloss Finish
    • Mounting: Straight PC
    • Actuator Colors: Black

Showing 1~ 12 of 196 Products

...
