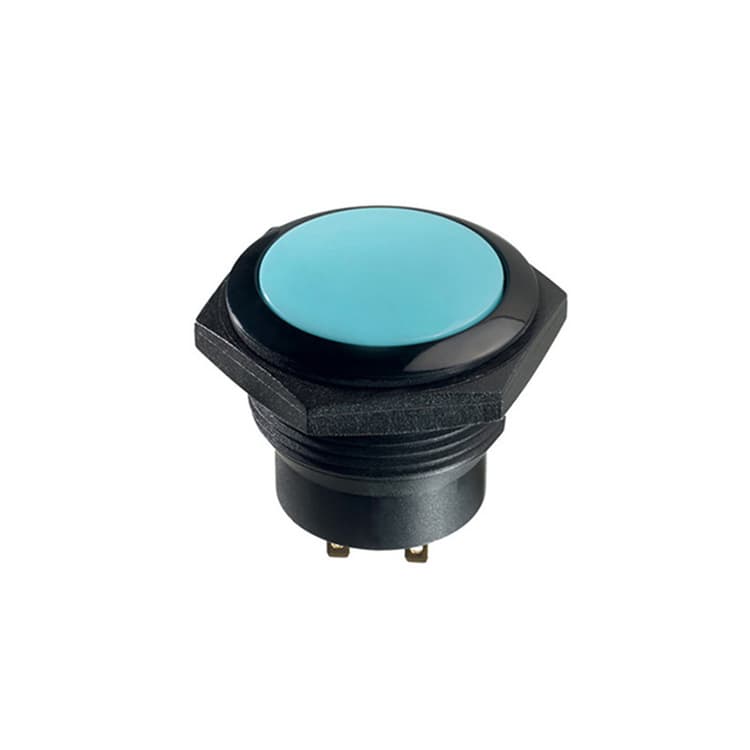

FP 30 mm

FP 30 mm series illuminated pushbutton switches feature a dia. 30 mm bushing and are available with fully-illuminated plunger or with laser-etched illuminated symbols. Snap-in and threaded bushing models available. These really visible products are ideal for applications including tractors, buses, trucks and automotive.

Main features

  • Easy to locate in poorly lit or dark environments
  • Highly visible
  • Large but lightweight
  • Gloss finish
  • Chrome plated version
  • Available in momentary or latching
  • Easy design and colour customization
Product detail
Product detail

Key Features

• Panel thickness : - Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket - Threaded bushing version : 1(.039) to 9 mm (.354) max. • Total travel : 2.8 mm ± 0.5 mm • Typical operating force : 8 N ± 2 N • Low level or mechanical life : - Momentary models : 1 million cycles - Latching models : 200,000 cycles • Torque : 2 Nm max. applied to nut
283 Products
Filters
  1. image placeholder
    FP 30 mm
    FPDR3F1217B1X
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: No Marking
    • Actuators: Round, Curved
  2. image placeholder
    FP 30 mm
    FPDR3D1452B11
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: White Pad Printing
    • Actuators: Round, Curved
  3. image placeholder
    FP 30 mm
    FPCR1D1243L11
    • Model: Snap-in 30mm
    • Markings: White Pad Printing
    • Actuators: Round, Curved
  4. image placeholder
    FP 30 mm
    FPCR1E1461B12
    • Model: Snap-in 30mm
    • Markings: Laser
    • Actuators: Round, Curved
  5. image placeholder
    FP 30 mm
    FPCR1D1453A22
    • Model: Snap-in 30mm
    • Markings: Laser
    • Actuators: Round, Curved
  6. image placeholder
    FP 30 mm
    FPCR1D1445B20
    • Model: Snap-in 30mm
    • Markings: Black Pad Printing
    • Actuators: Round, Curved
  7. image placeholder
    FP 30 mm
    FPDR1C1452A01
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: White Pad Printing
    • Actuators: Round, Curved
  8. image placeholder
    FP 30 mm
    FPCR3F1418D01
    • Model: Snap-in 30mm
    • Markings: White Pad Printing
    • Actuators: Round, Curved
  9. image placeholder
    FP 30 mm
    FPDR3C1238L2X
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: No Marking
    • Actuators: Round, Curved
  10. image placeholder
    FP 30 mm
    FPDR1D1272F00
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: Black Pad Printing
    • Actuators: Round, Curved
  11. image placeholder
    FP 30 mm
    FPDR3D1477A1X
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: No Marking
    • Actuators: Round, Curved
  12. image placeholder
    FP 30 mm
    FPDR1E1244L50
    • Model: Threaded Bushing 30 mm (1.1811in)
    • Markings: Black Pad Printing
    • Actuators: Round, Curved

Showing 1~ 12 of 283 Products

...
