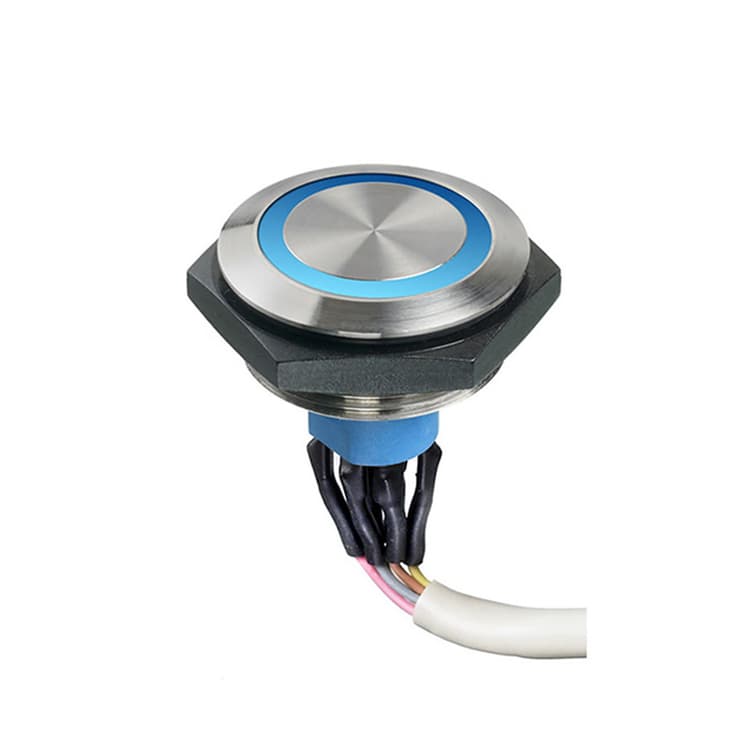

AV – 30 – NC/NO – Illuminated

APEM expands its range of security switches with a series of larger diameter pushbuttons. The AV 30 mm NC/NO pushbuttons are easy to operate due to their large actuation surface. Their wider illuminated ring makes them highly visible on the panel.

Main features

  • Bushing diameter 30 mm
  • Momentary NC/NO
  • Robustness: IK06
  • Panel sealing: IP67
  • Illuminated ring, 7 different colors and RGB illumination available
  • Mechanical life: 1 million cycles
  • Optional connector
Product detail
Product detail

Key Features

• Travel : 2.5 mm ± 0.3 mm (.003) • Torque : 10 Nm max. • Robustness : IK06 according to EN 62262 (1 joule) • Panel thickness : 1 (.039) to 6 mm (.236) max. • Low level or mechanical life : 1,000,000 cycles • Operating temperature : -30 °C to +85 °C • Hand soldering : 350 °C, 5 seconds max. • Packaging unit : flying lead/cable models : 1 piece - other models : 25 pieces
231 Products
Filters
  1. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V22F1020800K
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Green
  2. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V22F102074BK
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Green
  3. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V22F102034B
    • Terminals: Flying Leads
    • LED Color : Green
    • Ring Colors: Green
  4. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V22F002084B
    • Terminals: Flying Leads
    • LED Color : Green
    • Ring Colors: Translucent
  5. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V22C1020800K
    • Sealing: Sealed to IP67
    • Terminals: Cable
    • LED Color : Green
  6. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V12F102084B
    • Terminals: Flying Leads
    • LED Color : Green
    • Ring Colors: Translucent
  7. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V12F102074BK
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Green
  8. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V02C102034BK
    • Sealing: Sealed to IP67
    • Terminals: Cable
    • LED Color : Green
  9. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V022000084BK
    • Sealing: Sealed to IP67
    • Terminals: Solder Lug Quick Connect
    • LED Color : Green
  10. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V022000074BK
    • Sealing: Sealed to IP67
    • Terminals: Solder Lug Quick Connect
    • LED Color : Green
  11. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5V022000034BK
    • Sealing: Sealed to IP67
    • Terminals: Solder Lug Quick Connect
    • LED Color : Green
  12. image placeholder
    AV – 30 – NC/NO – Illuminated
    AV5922F202084BK
    • Sealing: Sealed to IP67
    • Terminals: Flying Leads
    • LED Color : Amber

Showing 1~ 12 of 231 Products

...
