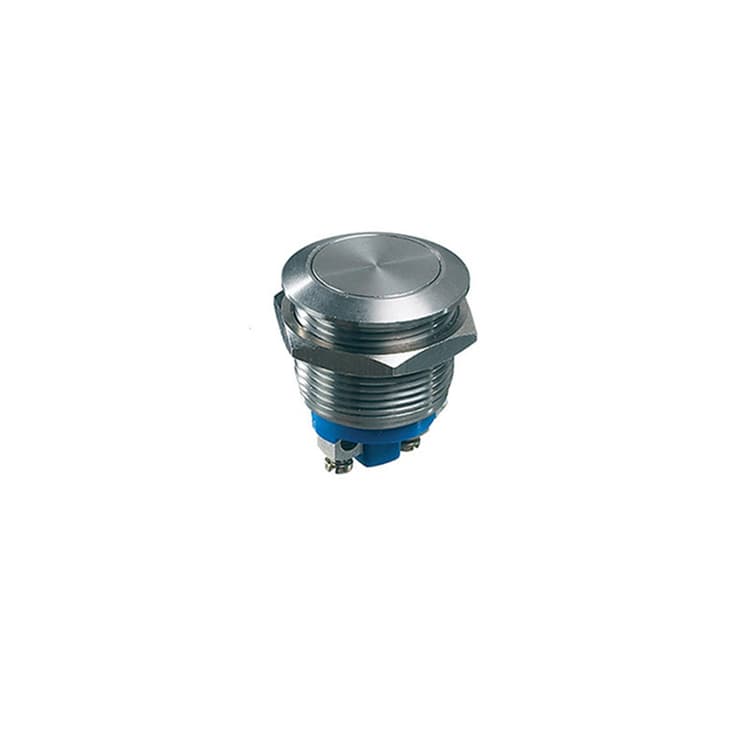

AV - 19-22 - security

The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.


Main features

  • Security pushbutton switches
  • Momentary NO
  • Actuator and bushing : nickel plated, chrome plated, varnished polishedor stainless steel
  • Flat or curved actuator available
  • Marking available
  • Front panel sealing IP65 in option
Product detail
Product detail

Key Features

• Torque : 1.5 Nm min.- 4 Nm max. applied to nut • Panel thickness : 1 (.039) to 11 mm (.433) max. • Low level or mechanical life : 1,000,000 cycles • Hand soldering : 300 °C, 3 sec. max. • Panel cut-out : Ø 19.2 mm (.755) or Ø 22.2 mm (.874) • Min. pitch for matrix mounting : 30 mm x 30 mm (1.181x1.181) (AV9P & AV9B : 25 mm x 25 mm)
470 Products
Filters
  1. image placeholder
    AV - 19-22 - security
    AV030003C225KUU
    • Case: Long
    • Sealing: IP65
    • Terminals: Solder Lug Quick Connect
  2. image placeholder
    AV - 19-22 - security
    AV030003C205KUU
    • Case: Long
    • Sealing: IP65
    • Terminals: Solder Lug Quick Connect
  3. image placeholder
    AV - 19-22 - security
    AV020003C225UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Solder Lug Quick Connect
  4. image placeholder
    AV - 19-22 - security
    AV030003C201KUU
    • Case: Long
    • Sealing: IP65
    • Terminals: Solder Lug Quick Connect
  5. image placeholder
    AV - 19-22 - security
    AV020003A910UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Screw
  6. image placeholder
    AV - 19-22 - security
    AV190003A981UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Screw
  7. image placeholder
    AV - 19-22 - security
    AV090003A920UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Screw
  8. image placeholder
    AV - 19-22 - security
    AV020003C901UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Screw
  9. image placeholder
    AV - 19-22 - security
    AV190003A200UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Solder Lug Quick Connect
  10. image placeholder
    AV - 19-22 - security
    AV030003A923UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Screw
  11. image placeholder
    AV - 19-22 - security
    AV090003C210UU
    • Case: Long
    • Sealing: Unsealed
    • Terminals: Solder Lug Quick Connect
  12. image placeholder
    AV - 19-22 - security
    AV030003A205KUU
    • Case: Long
    • Sealing: IP65
    • Terminals: Solder Lug Quick Connect

Showing 1~ 12 of 470 Products

...
