Q30

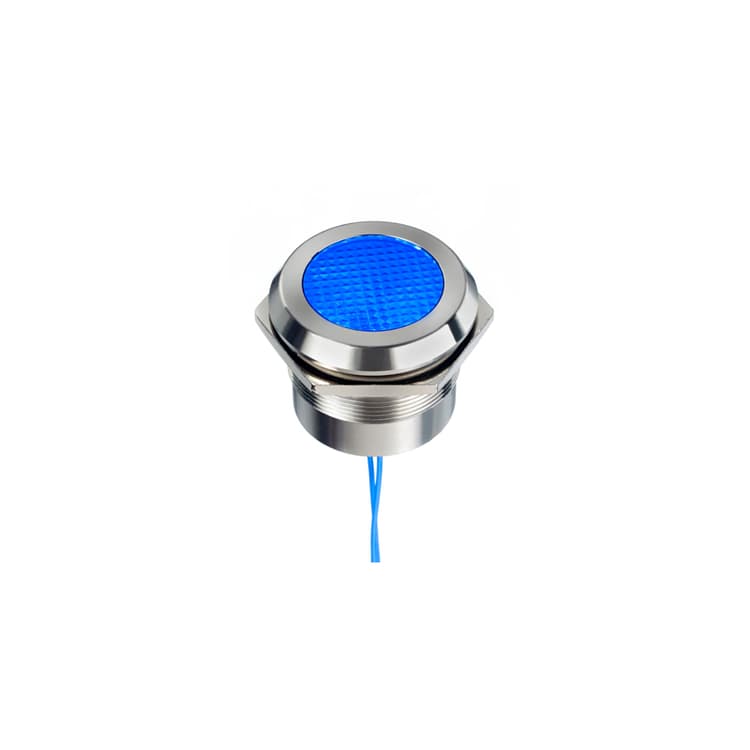

This Ø30 mm indicator series is designed to look good and work hard.
The indicator comes in single-color or RGB illumination and is daylight and long-distance viewable thanks to the mega-bright LEDs and the Fresnel lens. The chip-LEDs providing the illumination have a reduced heat generation making the indicator suitable for mounting into heat-sensitive plastics.
These aesthetic indicators have a long list of high specifications to withstand demanding environments. They are front- and rear-sealed with a more advanced voltage range complete with built-in safety. The flush stainless-steel look with a robust internal construction allows the indicator to withstand freezing temperatures, chemicals, sunlight, transient spikes, and other extreme conditions.

Main features

• Ø30mm panel cut-out
• Single color illumination or RGB illumination with 6 SMT chip-LED
• Hyperbright LEDs viewed through an 18.2mm Fresnel lens for daylight viewing
• Bezel finish: Stainless Steel 316L.
• Prominent, flush, recessed and chamfer bezel styles.
• Voltage options 12V to 24VAC/DC with reverse voltage protection
• Termination: 200 mm long wires, hard-wearing 20AWG wires UL1061

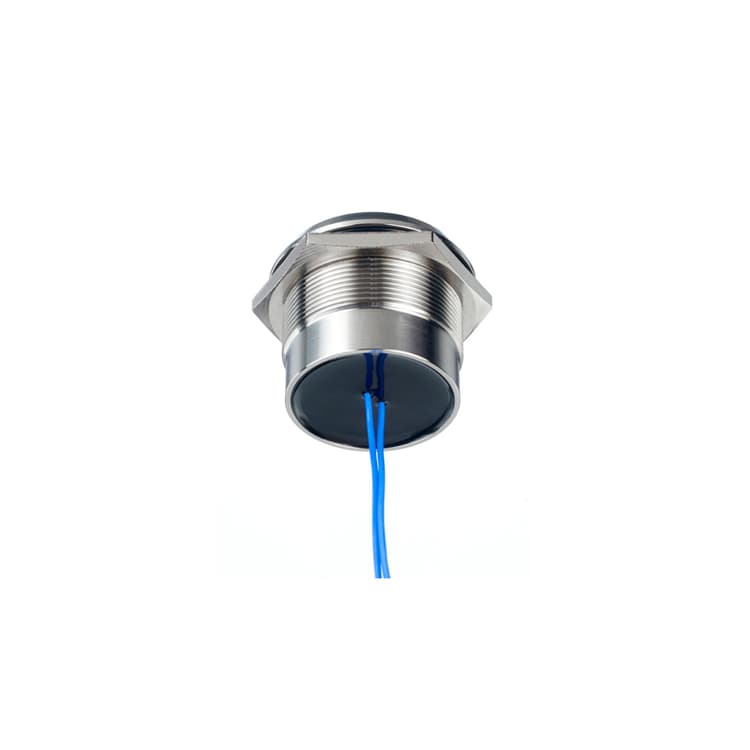

• IP67 & IP69K above panel sealed with potted back end
• Supplied with fixing nut and spring washer.

Typical Applications

• Process Controls
• Professional Electrical Appliances
• Communications, Radar
• Civil engineering vehicles, trucks, diggers, crane
• Automotive
• Aftermarket
• HVAC, Energy Management
• Lifts
• Machine Tool
