Q10

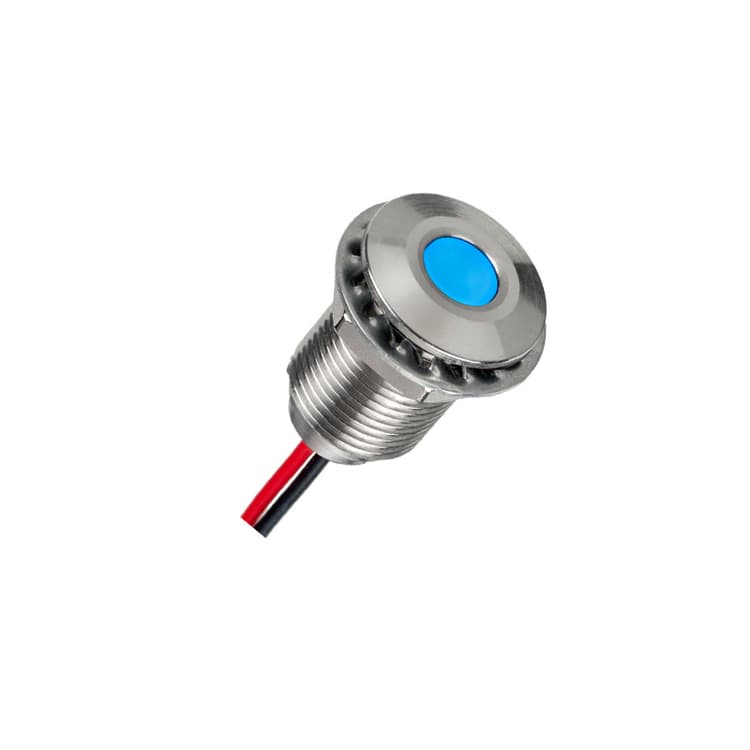

Panel mount LED indicators with 5 mm colored diffused epoxy lens or 5 mm water clear super bright LEDs with fixed light, flashing and RGB options.

Main features

  • Stainless Steel 316L or anodized bezel finish.
  • Shaped flush bezel style.
  • Voltage: 2 VDC - 28 VAC/DC.
  • 200 mm long wires.
  • IP67 sealing option (EN60529).
  • Supplied with fixing nut and spring washer.

Typical Applications

  • Medical
  • Telecommunications
  • Engineering
  • Transport Systems
  • Special Vehicles
  • Agricultural Vehicles
Product detail
Product detail

Key Features

• Max Reverse Voltage: 5 V • Viewing Angle: 60° * • Life Expectancy: 100,000 hours • Torque: 20 to 25 cNm * Dependant on Model
338 Products
Filters
  1. image placeholder
    Q10
    Q10F5SXXHO06E
    • Sealing: IP67
    • LED Color : Hyper Bright Orange
    • Terminals: Rear Epoxy Wires
  2. image placeholder
    Q10
    Q10F5SXXHY06E
    • Sealing: IP67
    • LED Color : Hyper Bright Yellow
    • Terminals: Rear Epoxy Wires
  3. image placeholder
    Q10
    Q10F5SXXHG06E
    • Sealing: IP67
    • LED Color : Hyper Bright Green
    • Terminals: Rear Epoxy Wires
  4. image placeholder
    Q10
    Q10F5SXXW06E
    • Sealing: IP67
    • LED Color : White
    • Terminals: Rear Epoxy Wires
  5. image placeholder
    Q10
    Q10F5SZZRYG24E
    • Sealing: IP67
    • Voltage: 24VDC
    • Terminals: Rear Epoxy Wires
  6. image placeholder
    Q10
    Q10F5SZZRYG02E
    • Sealing: IP67
    • Voltage: No Resistor
    • LED Color : Red/Yellow/Green
  7. image placeholder
    Q10
    Q10F5SXXY24E
    • Sealing: IP67
    • Voltage: 24VDC
    • LED Color : Yellow
  8. image placeholder
    Q10
    Q10F5SXXY12E
    • Sealing: IP67
    • Voltage: 12V DC
    • LED Color : Yellow
  9. image placeholder
    Q10
    Q10F5SXXY06E
    • Sealing: IP67
    • Voltage: 6V DC
    • LED Color : Yellow
  10. image placeholder
    Q10
    Q10F5SXXY02E
    • Sealing: IP67
    • Voltage: No Resistor
    • LED Color : Yellow
  11. image placeholder
    Q10
    Q10F5SXXW28E
    • Sealing: IP67
    • Voltage: 28V DC
    • LED Color : White
  12. image placeholder
    Q10
    Q10F5SXXW24E
    • Sealing: IP67
    • Voltage: 24VDC
    • LED Color : White

Showing 1~ 12 of 338 Products

...
