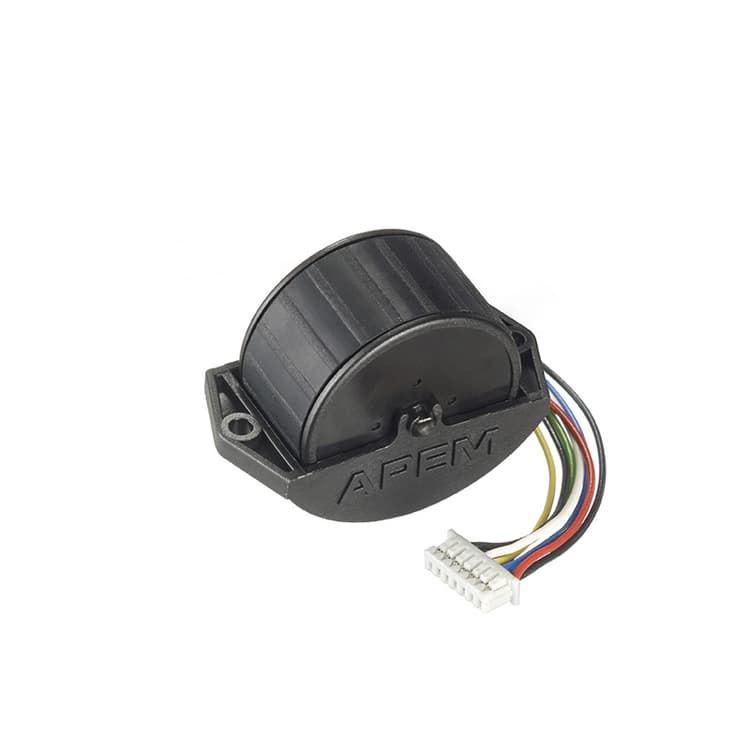

HR - infinite wheel

Building on the experience gained with the HR series, this version meets the needs for greater precision and comfort when driving special vehicles in difficult environments (dust, humidity, cold, etc.).


Integrated on a joystick or control panel, the infinite wheel function replaces the encoder with a quadrature output , making it easier to browse menus or use tools with precision. The end user gains a control tool that is reliable, ergonomic and easy to handle: a service life of over one million cycles, a flush-fitting design with infinite scrolling (24 detents per rotation), and a soft-touch elastomer membrane.The wheel is backlit to maintain maximum visibility even when working in dusty or poorly lit environments.

Main features

  • 360° roller
  • Hall effect technology
  • Customization: backlighting, color, outputs
  • IP68
Product detail
Product detail

Key Features

• APEM SAS patented design • Operating Force between position: 2.5 N ± 0.5N (with 24 positions) • Expected Life: 1 000,000 lifecycles • Mass/Weight: 11 g ±2 g (0.4 oz ± 0.07 oz)
6 Products
Filters
  1. image placeholder
    HR - infinite wheel
    HRW217Q6
    • Actuator: 360° Wheel
    • Mounting: Rear
    • Mechanical: Friction Hold with 24 Detents
  2. image placeholder
    HR - infinite wheel
    HRW216Q6
    • Actuator: 360° Wheel
    • Mounting: Rear
    • Mechanical: Friction Hold with 24 Detents
  3. image placeholder
    HR - infinite wheel
    HRW213Q6
    • Actuator: 360° Wheel
    • Mounting: Rear
    • Back lighting: Yes
  4. image placeholder
    HR - infinite wheel
    HRW203Q6
    • Actuator: 360° Wheel
    • Mounting: Rear
    • Back lighting: No
  5. image placeholder
    HR - infinite wheel
    HRW202Q6
    • Actuator: 360° Wheel
    • Mounting: Rear
    • Back lighting: No
  6. image placeholder
    HR - infinite wheel
    HRW201Q6
    • Actuator: 360° Wheel
    • Mounting: Rear
    • Back lighting: No

Showing 1~ 6 of 6 Products
