XD

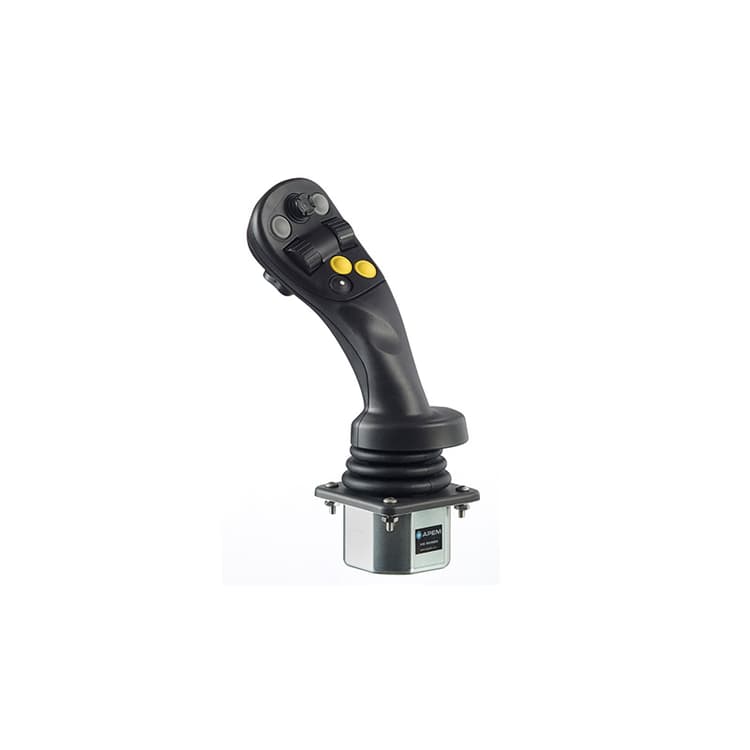

The XD Series joystick, featuring Hall effect technology, is a sophisticated multi-axis Hand Grip controller crafted for challenging vehicle applications. This compact yet robust joystick controller is engineered to withstand heavy-duty use in off-highway vehicles and machinery, offering an impressive lifespan of up to 10 million operations.


The XD Series joystick stands out with its minimal below-panel depth of just 60 mm, yet it is capable of resisting horizontal loads up to 400 lbf thanks to its sturdy all-metal construction. The joystick handle of the XD series boasts a uni-body construction with modular inserts that enhance design flexibility. These inserts include an index trigger switch, an operator presence paddle, and a customizable faceplate, ensuring IP67 environmental sealing above the panel, which guards against the ingress of dust and liquids.


Main features of the XD Series Hall Effect joystick:

  • SIL 2 compatibility with redundant Hall sensors
  • High axial load resistance (1780 N - 400 lbf)
  • Shallow mounting depth of less than 60 mm (2.36 inches)
  • CAN bus joystick functionality with SAE CAN bus J1939-71 and CAN Open LSS
  • Joystick hall sensor rated for 10 million lifecycles


Product detail
Product detail

Key Features

• Operating Temperature Range: -40 °C to +85 °C (-40 °F to +185 °F) • Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F) • Above Panel Sealing: Capable of up to IP67 (varies by handle configuration) • Humidity Resistance: IEC 60068-2-38 • Thermal Shock Resilience: According to SAE J1455 section 4.1.3.2 • Salt Spray Tolerance: IEC 60068-2-11
62 Products
Filters
  1. image placeholder
    XD
    XDGTY2MNNCYYPAN
    • Handle: GT
    • Centering: Spring Centering
    • Face plate: Two Pushbuttons, One Hall Effect Thumbwheel
  2. image placeholder
    XD
    XDGTY2MNNCYYMAN
    • Handle: GT
    • Face plate: Two Hall Effect Thumbwheels
    • Operation: One Axis (Y)
  3. image placeholder
    XD
    XDGTY2MNNCNNPAN
    • Handle: GT
    • Centering: Spring Centering
    • Face plate: Two Pushbuttons, One Hall Effect Thumbwheel
  4. image placeholder
    XD
    XDGTT2MNNCYYPAN
    • Handle: GT
    • Face plate: Two Pushbuttons, One Hall Effect Thumbwheel
    • Operation: Two Axes
  5. image placeholder
    XD
    XDGTT2MNNCYYMAN
    • Handle: GT
    • Face plate: Two Hall Effect Thumbwheels
    • Operation: Two Axes
  6. image placeholder
    XD
    XDGTT2MNNCYYHAN
    • Handle: GT
    • Centering: Spring Centering
    • Face plate: Toggle Switch, Two Pushbuttons
  7. image placeholder
    XD
    XDGTT2MNNCNYPAN
    • Handle: GT
    • Face plate: Two Pushbuttons, One Hall Effect Thumbwheel
    • Operation: Two Axes
  8. image placeholder
    XD
    XDGTT2MGNCYYGAN
    • Handle: GT
    • Face plate: Six Pushbuttons
    • Operation: Two Axes
  9. image placeholder
    XD
    XDGTT2MGNCNNMAN
    • Handle: GT
    • Face plate: Two Hall Effect Thumbwheels
    • Operation: Two Axes
  10. image placeholder
    XD
    XDGTT2LNNCYYLAN
    • Handle: GT
    • Face plate: Eight Pushbuttons
    • Operation: Two Axes
  11. image placeholder
    XD
    XDGTT2LNNCYYGAN
    • Handle: GT
    • Face plate: Six Pushbuttons
    • Operation: Two Axes
  12. image placeholder
    XD
    XDGTT2LNNCYYEAN
    • Handle: GT
    • Centering: Spring Centering
    • Face plate: Four Pushbuttons

Showing 1~ 12 of 62 Products

...
