XF

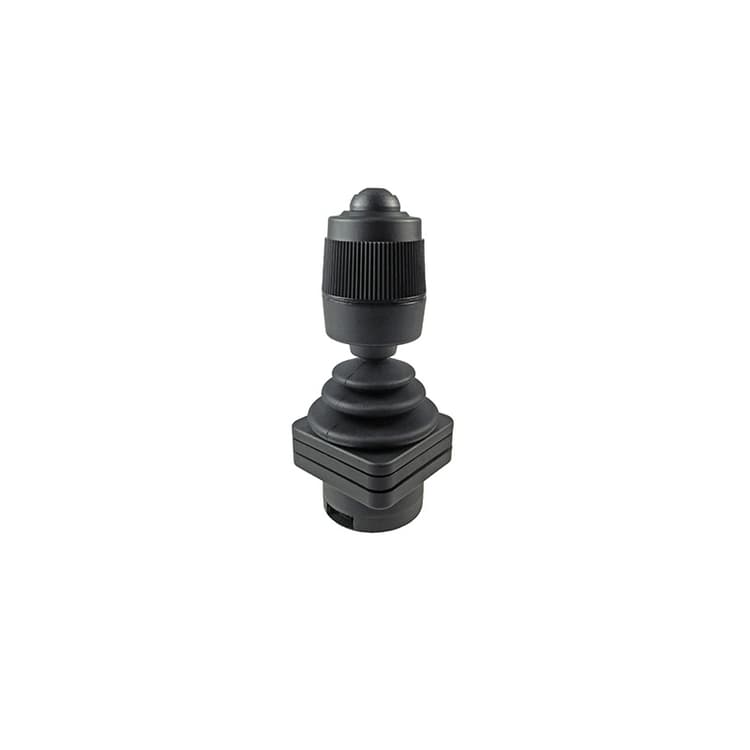

The XF Series joystick is a ruggedized finger operated joystick controller specifically engineered for vehicle applications. This new series is designed per the ISO 25197 standard and is rated to withstand 80lbf pull force across the X/Y axis and over 5Nm torque in the Z axis. With contactless Hall effect sensing, the XF Series provides long life proportional control for over five million lifecycles and is sealed up to IP67.

Product detail
Product detail

Key Features

• Rugged design for vehicle applications • Up to three axis • CAN bus J1939 & CANopen protocol options • USB protocol option • Panel sealed up to IP67 • Break Out Force: 1.3N (0.3lbf) • Operating Force: 2.8N (0.63lbf) • Maximum Applied Force: 350N (78.00lbf) • Deflection Angle: 36º (18º from center) • Expected Life: 5 million • Lever Action: Single spring, omnidirectional • Handle with integrated operator presence
98 Products
Filters
  1. image placeholder
    XF
    XF51ANZTSBNNNNEAC
    • Handle: 3-Axis, No Buttons
    • Operation: Two Axes
    • Mechanical: None
  2. image placeholder
    XF
    XF51ANZTSBNNAAEAA
    • Handle: 3-Axis, No Buttons
    • Operation: Two Axes
    • Mechanical: None
  3. image placeholder
    XF
    XF50ANZTSBNNCCEAA
    • Handle: 3-Axis, No Buttons
    • Operation: Two Axes
    • Mechanical: None
  4. image placeholder
    XF
    XF50ANNTSANNVVEAAV
    • Handle: 3-Axis, No Buttons
    • Operation: Two Axes
    • Mechanical: None
  5. image placeholder
    XF
    XF55NB2ZPSBNNBBEACV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Plus
  6. image placeholder
    XF
    XF55SB2ZTSANNVVEACV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Square
  7. image placeholder
    XF
    XF55SB2ZPSANNCCEACV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Plus
  8. image placeholder
    XF
    XF55SB2ZXSBNNVVEADV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Slotted
  9. image placeholder
    XF
    XF55SB2NXSANNCCEAEV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Slotted
  10. image placeholder
    XF
    XF55NB2NXSAGNPPEABV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Slotted
  11. image placeholder
    XF
    XF55SB2ZYSAGNBBEABV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Slotted
  12. image placeholder
    XF
    XF55SB2ZRSAGNVVEACV
    • Handle: 3-Axis
    • Buttons: Two
    • Limiter: Round

Showing 1~ 12 of 98 Products

...
