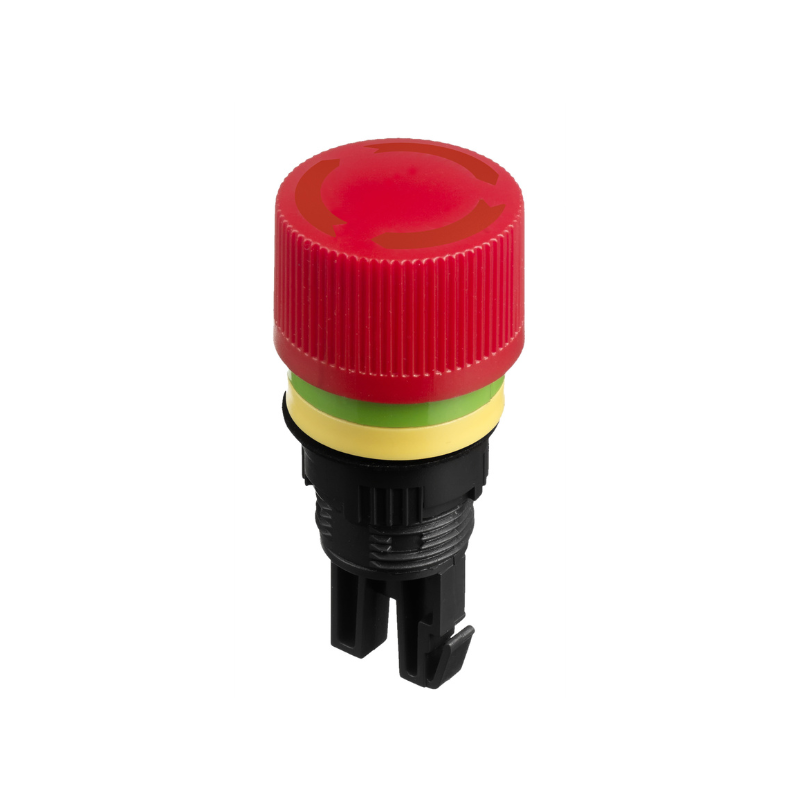

A01ES-D series

View larger

Reference: A01ES-D

Condition: New product

A01ES-D series emergency stops is ergonomically designed for the users. With 4 actuator styles featuring a compact and modern design (dia.16 mm), these emergency stops are safe and easy to operate (Push to shut-off, twist to release) and feature green locked/unlocked status indicators for a quick and easy visual status control. The A01ES-D series is certified EN60947-5-5 and is IP65 front sealed.

Main features :

single and double pole positive break
maximum current/voltage rating : AC-15, 1.5 A 250 VAC, 6 A 250 VAC
Operating temperature : -20 °C / +55 °C
IP65 front panel sealing
Electrical and mechanical life : 6,050 cycles

More details

Print
Share the page
Share the page
A01ES-D series
A01ES-D series emergency stops is ergonomically designed for the users. With 4 actuator styles featuring a compact and modern design (dia.16 mm), these emergency stops are safe and easy to operate (Push to shut-off, twist to release) and feature green locked/unlocked status indicators for a quick and easy visual status control. The A01ES-D series is certified EN60947-5-5 and is IP65 front sealed.

Main features :
single and double pole positive break
maximum current/voltage rating : AC-15, 1.5 A 250 VAC, 6 A 250 VAC
Operating temperature : -20 °C / +55 °C
IP65 front panel sealing
Electrical and mechanical life : 6,050 cycles
Recipient :
Name of your friend ^* :
E-mail address of your friend ^* :
^* Required fields
or Cancel

Download

Datasheet

3D File

Complementary products

A02ES-H series
An emergency stop switch with exclusive “built-in-safety” design. Certified to the highest safety standards: UL 508, CSA 22.2, EN 60947-5-5 and EN 60547-5-1. For dia. 22 mm panel cut-out. Easy to mount and operate. Illuminated version available. Main featuresHigh security: no risk of accident in the assembly and maintenance phasesPush to lock, pull or...
More
A02ES-I series
An ergonomic emergency stop switch certified to the highest safety standards: UL 508, CSA 22.2 and EN 60947-5-5. For dia. 22 mm panel cut-out. Easy to mount and operate. Illuminated version available.Main features Industrial rangePush to lock, pull or twist to releaseCurrent/voltage rating: AC-12, 6 A 240 VAC / DC-12, 8 A 24 VDCPanel sealed to...
More
Es series
Heavy-duty safety switch with dia. 34 mm red anodized actuator, designed for heavy-duty applications. Features IK10 impact resistance, IP65, IP67 & IP69K frontal sealing and compliant with EN 60947-5-1 certification. Push-pull ON-ON function. Main featuresMetal product with dia. 22 mm bushing (market standard) 100.000 cycle mechanical...
More

More info

Ergonomics 1

Ergonomics 2

Features

General specification

• Panel thickness : 6 mm (.236) max.
• Mechanical life : 6,050 cycles
• Operating force : 18 to 20 N
• Soldering : 350 °C, 5 seconds (IEC 68-2-2-20Tb, method 2)
• Switch terminals : Solder/ Faston 2.8 mm (.110) (IEC 68-2-20)
• Switch block approved to : UL1054 / VDE / EN61058-1
• Torque : 0.8 Nm

Environmental specifications

• Operating temperature : -20 °C to +55 °C
• Sealing : front panel IP65, rear panel IP40
• According to EN 60947-5-5

Electrical specifications

• Electrical function : push to shut off, twist to release
• Current/voltage rating : AC-15 1.5 A 250 VAC, 6 A 250 VAC
• Electrical life : 6,050 cycles
• Contact gap : >3 mm
• Insulation resistance : 50 M min
• Dielectric test voltage : 2900 V

Materials

• Operator Case : Polyetherimide
• Actuator : Polycarbonate
• Switch block : PBT
• Panel Seal : Neoprene
