YW - E-stops

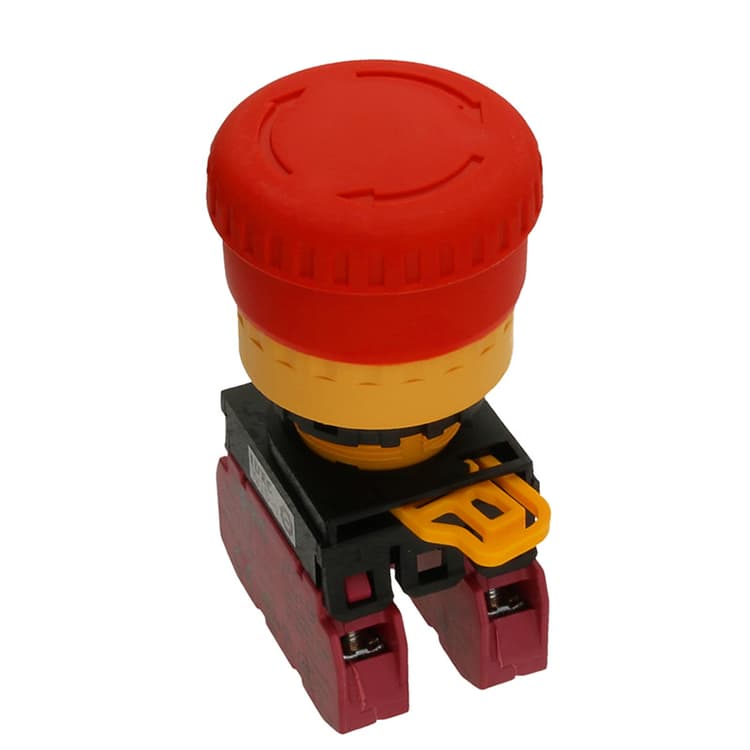

An ergonomic emergency stop switch certified to the highest safety standards: UL 508, CSA 22.2 and EN 60947-5-5. For dia. 22 mm panel cut-out. Easy to mount and operate. Illuminated version available.


Main features

  • Industrial range
  • Push to lock, pull or twist to release
  • Current/voltage rating: AC-12, 6 A 240 VAC / DC-12, 8 A 24 VDC
  • Panel sealed to IP65
  • Mechanical life: 250,000 cycles (with one contact block)
  • Available in single, double or three pole version
Product detail
Product detail

Key Features

• Panel thickness : 6 mm (.236) max. • Switch terminals : M3.5 screws
