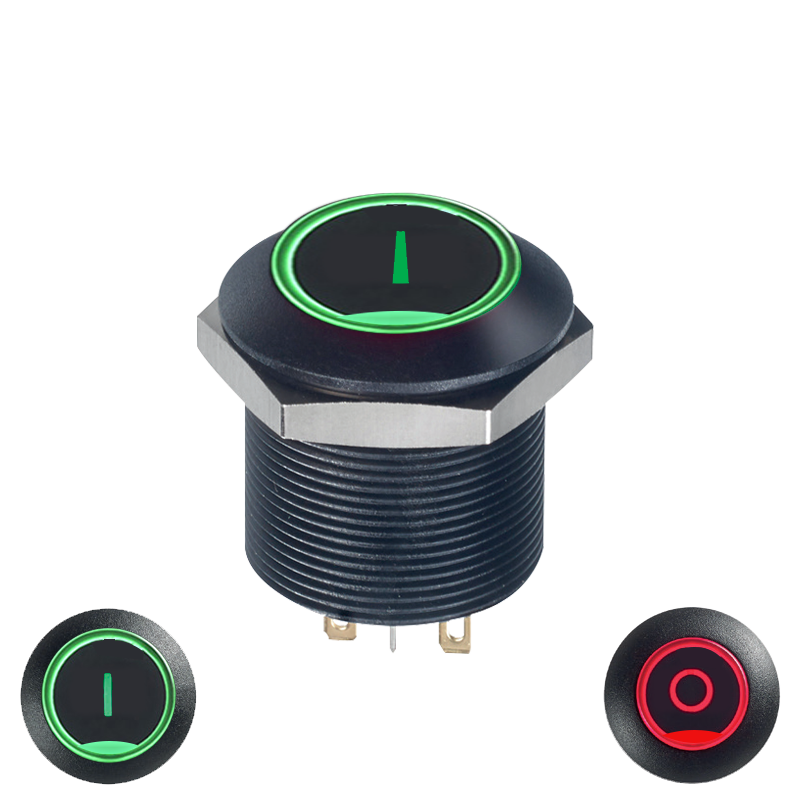

FDAP1C1282F05
The FDAP1C1282F05 Panel Switch is a versatile and functional component designed for electrical applications. With its pushbutton design, it offers ease of use and reliability. Whether you need to turn a device on or off, this switch provides the perfect solution. Its solder lugs terminals ensure secure and stable connections, guaranteeing optimal performance.
Caractéristiques principales
- Couleurs de l'organe de manoeuvre: Noir
- Forme de l'actionneur: Plat, Rond
- Fonctions électriques: ON OFF
- Matériaux de contact: Argent
- Contrôle LED et nombre de pôles: Led indépendante, 1 pôle
- Résistances LED: Aucune résistance fournie.
- Modèle: Douille filetée
- Terminaux: Cosses à souder
- Symboles: sur vert hors rouge avec anneau
Spécifications
Caracteristiques distinctives:
- Double icon actuator
- Snap-in and threaded bushing models
- Large but lightweight
- Sealed to IP69K (threaded bushing version)
Specifications generales:
- Panel thickness :- Snap-in version : 1.5 (.059) to 2 mm (.078) with panel gasket 2 (.078) to 2.5 mm (.885) without panel gasket- Threaded bushing version :1(.039) to 18 mm (.708) max.
- Total travel : 2.5 mm ± 0.5 mm
- Typical operating force : 8 N ± 2 N
- Low level or mechanical life :- Momentary models : 1 million cycles- Latching models : 200,000 cycles
- Torque : 3 Nm max. applied to nut
Specifications environnementales:
- Front panel sealing :- Threaded bushing version : IP69K according to DIN 40050-9- Snap-in version : IP54 according to IEC 60529 with panel gasket and 2 mm panel thickness
- Operating temperature : -40 °C to +75 °C
Specifications electriques:
- Max. current/voltage rating with resistive load :- silver contacts (code 2) : 4 A 12 VDC- gold plated contacts (code 4) : 200 mA 12 VDC
- Initial contact resistance : 50 mΩ max.
- Insulation resistance : 1 GΩ min. at 500 VDC
- Dielectric strength : 1,000 Vrms 50 Hz min.
- Electrical life at full load :- Momentary models : 1 million cycles (gold plated contacts), 400,000 cycles (silver contacts)- Latching models : 200,000 cycles
