Q10F5SXXSY12E

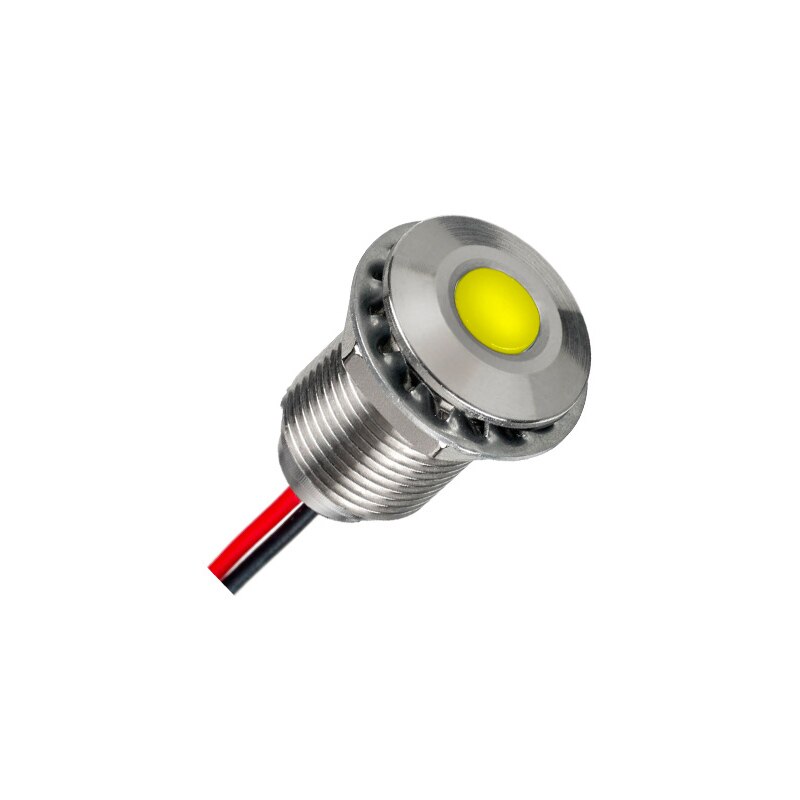

The Q10F5SXXSY12E LED Indicator is designed with a 10 mm mounting hole, making it easy to install. Its flush bezel style gives it a sleek and modern look. The indicator features rear epoxy wires for convenient terminal connections. The bezel finish is made of high-quality stainless steel, adding durability and a polished finish. With fixed light illumination, the indicator emits a steady and reliable glow. The super bright yellow LED color ensures clear visibility in any environment. Operating at a voltage of 12 VDC, this indicator is energy-efficient. Additionally, its IP67 sealing provides protection against dust and water, making it suitable for various applications.
Key Features
- Mounting Hole: 10 mm
- LED Color: Super Bright Yellow
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Stainless Steel
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5 mm flush diffused LED, standard, hyper bright or water clear
- Flush chamfered bezel style(200 mm long) wire terminations
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60° *
- Life Expectancy: 100,000 hours
- Torque: 20 to 25 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
