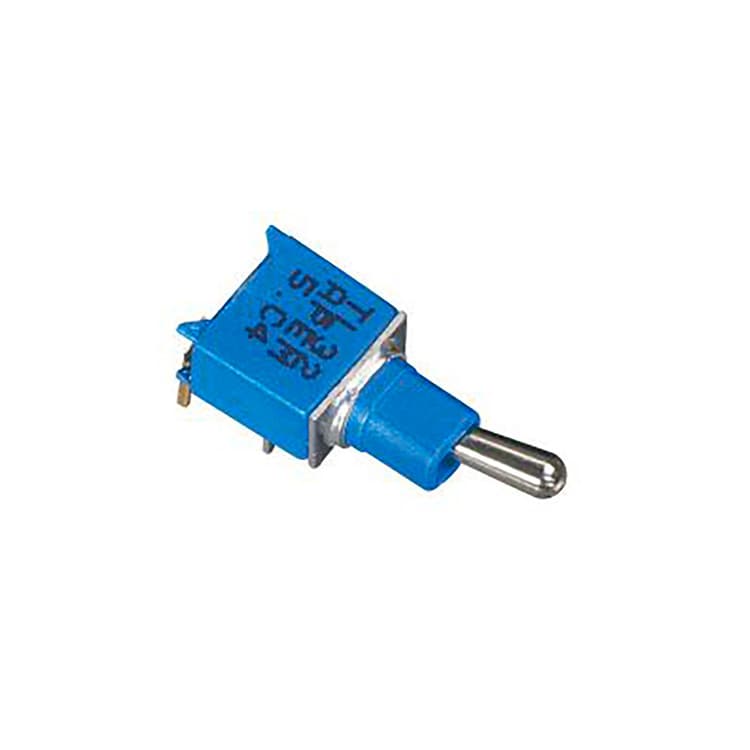

TL48W015425
The TL48W015425 is a versatile PCB switch designed with a focus on electrical functions. Its compact size allows for easy integration into various electronic devices. With its reliable ON-OFF-MOM functionality, this switch offers seamless control over electrical circuits. Whether you're designing a new gadget or upgrading an existing device, the TL48W015425's electrical functions make it an ideal choice.
Key Features
- Levers: Medium Lever (Nickel-Plated)
- Contacts: Brass (Silver-Plated)
- Electrical Functions: ON OFF MOM
- Poles: Double Pole
- Terminals: Right Angle Horizontal Mounting
- Options: Trimmed Terminals 5mm (0.198in)
Specifications
General Specifications:
- Strength of terminals : pull-out force - 10 N max.
- Cleaning : solvents or water + detergent
- Wave soldering : 260 °C - 5 sec
Environmental Specifications:
- Operating temperature : -30 °C to +85 °C
- Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3)
Electrical Specifications:
- Max. current/voltage rating with resistive load :- gold plated contacts : 0.4 VA 20 V max. AC or DC- silver plated contacts : 0.5 A 48 V max. AC or DC
- Minimum load : 10 mA 50 mV - 10 µA 5 VDC
- Contact resistance : 20 mΩ max.
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength :1,000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals
