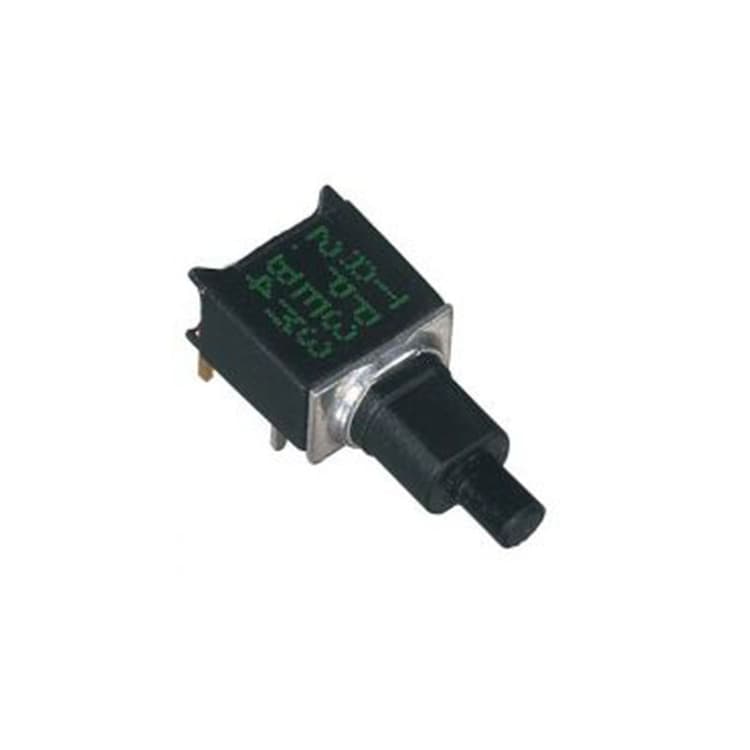

TP32Y01300840
Tiny washable momentary pushbutton switches available in single pole and double pole with gold or silver plated contacts and terminals.
Key Features
- Series: TP
- Electrical functions: ON - MOM
- Contacts and terminal materials: Brass, silver plated
- Special options: Extended terminals
- Plungers case color: Short - standard (Blue case)
- Number of poles: Single pole
- Caps: Ø 5 (.196) (P/N U4320) (long plunger)
- Terminals: Bracket mounting
Specifications
General Specifications:
- Total travel :- function 2 : 1 mm (.039)- function 3 : 0.8 mm (.031)
- Strength of terminals : pull-out force - 10 N max.
- Cleaning : solvents or water + detergent
- Wave soldering : 260 °C - 5 sec.
Environmental Specifications:
- Operating temperature : -30 °C to +85 °C
- Moisture : 21 days 95 % (NFC 20-603 - IEC 68-2-3)
Electrical Specifications:
- Max. current/voltage rating with resistive load :- gold plated contacts : 0.4 VA 20 V max. AC or DC- silver plated contacts : 0.5 A 48 V max. AC or DC
- Minimum load : 10 mA 50 mV - 10μA 5VDC
- Contact resistance : 50 mΩ max.
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength :1,000 Vrms 50 Hz min. between terminals and frame500 Vrms 50 Hz min. between terminals
- Electrical life at full load :- gold plated contacts : 60,000 cycles- silver plated contacts : 20,000 cycles
Materials:
- Case : PBT
- Actuator : polyamide, glass filled
- Contacts and terminals :0 : brass, gold plated1 : brass, silver plated3 : brass, gold plated (1.27 micron gold)8 : contact brass, gold plated + tin plated terminals9 : contact brass, gold plated (1.27 micron gold) + tin plated terminals
- Terminal seal : epoxy
