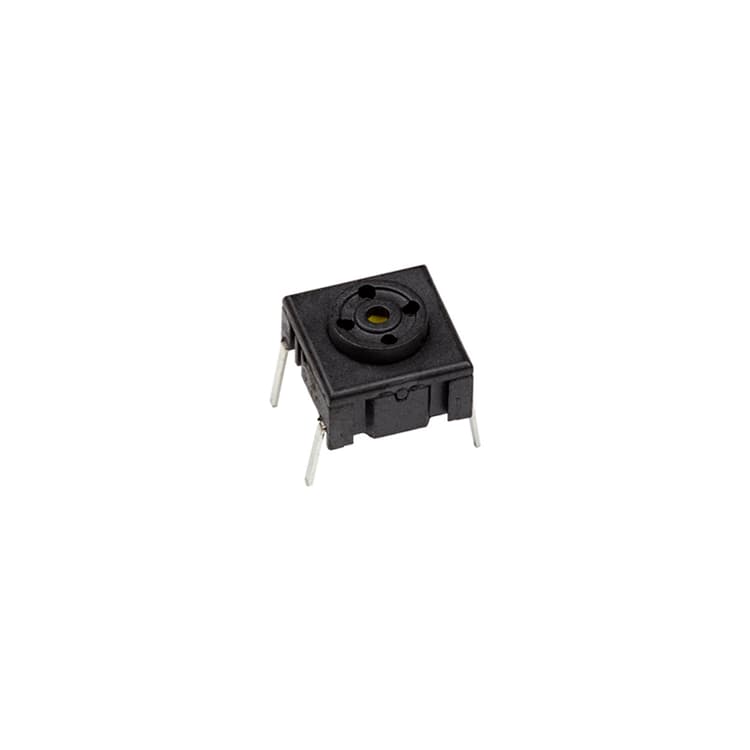

Multimec™ 3E

Multimec™ 3E series switches have a hole in the switch body for mounting caps. This switch series is used for mounting Varimec™ caps. There are 2400 options in the Varimec™ range.

Caps that can be mounted on Multimec™ 3E: Foilmec™ 1Y/1YA and Varimec™


Main features

  • h=6.4 mm
  • 10 x 10 mm
  • Momentary NO
  • IP67 sealing
  • 10,000,000 cycles
  • SMD, TH or through-hole RAS

Key Features

• Through-hole (TH) or surface mount (SMD) or right angle through-hole • 50 mA / 24 VDC • Single pole/momentary • 10,000,000 operations lifetime • Temperature range: -40/+160 °C • IP67 sealing • Actuation force: 3.5 N
10 Products
Filters
  1. image placeholder
    Multimec™ 3E
    3ETH915.0
    • Color: Black LCP
    • Height: 1.50
    • Mounting: Through-hole
  2. image placeholder
    Multimec™ 3E
    3ETH909.5
    • Color: Black LCP
    • Height: 0.95
    • Mounting: Through-hole
  3. image placeholder
    Multimec™ 3E
    3ESH2909.5
    • Color: Black
    • Height: 0.95
    • Mounting: Surface Mount
  4. image placeholder
    Multimec™ 3E
    3ESH2808.0
    • Color: Red
    • Height: 0.80
    • Mounting: Surface Mount
  5. image placeholder
    Multimec™ 3E
    3ESH2012.0
    • Color: Blue
    • Height: 1.20
    • Mounting: Surface Mount
  6. image placeholder
    Multimec™ 3E
    3ETH9RAS
    • Options: Right Angle with TH Only
    • Mounting: Through-hole
  7. image placeholder
    Multimec™ 3E
    3ETH9Q
    • Options: Quiet Contacts
    • Mounting: Through-hole
  8. image placeholder
    Multimec™ 3E
    3ETH9G
    • Options: Gold Contacts
    • Mounting: Through-hole
  9. image placeholder
    Multimec™ 3E
    3ESH9RAS
    • Options: Right Angle with TH Only
    • Mounting: Surface Mount
  10. image placeholder
    Multimec™ 3E
    3ESH9Q
    • Options: Quiet Contacts
    • Mounting: Surface Mount

Showing 1~ 10 of 10 Products
