QS121XXHY220

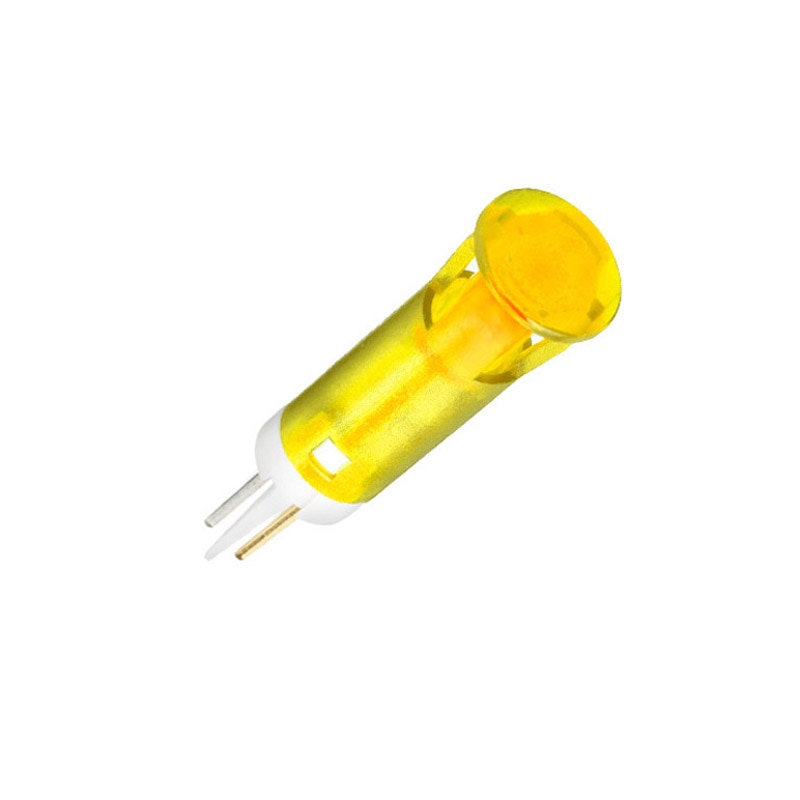

The QS121XXHY220 LED Indicator is a versatile and reliable component that is perfect for various applications. With its 12 mm mounting hole, it can be easily installed in any compatible panel or device. The solder lug faston terminals ensure a secure and stable connection. This indicator features a fixed light illumination, providing a steady and clear signal. The hyper bright yellow LED color adds a vibrant touch to any display. Operating at 220 VAC, it offers a strong and consistent performance. Trust the QS121XXHY220 LED Indicator for all your signaling needs.
Key Features
- Mounting Hole: 12 mm
- Led Colour: Hyper Bright Yellow
- Voltage: 220V AC
- Terminals: Solder Lug Faston
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 6 mm, 8 mm, 10 mm and 12 mm Ø cut-out sizes
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LED
- for daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
