QS103ZZRYG24

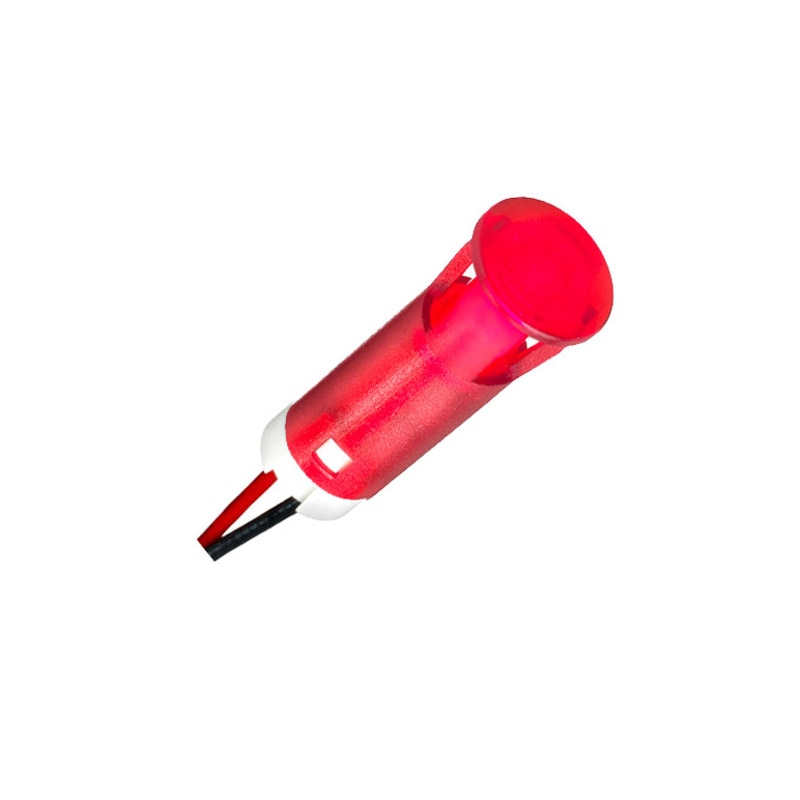

The QS103ZZRYG24 LED Indicator is a versatile and high-quality product that is perfect for a variety of applications. With a mounting hole diameter of 10 mm, it can easily be installed in any compatible panel or equipment. The terminals are designed to accommodate wires, providing a secure and reliable connection. This LED indicator offers tri-color illumination, allowing for clear and distinctive visual cues. The LED colors available are red, yellow, and green, ensuring that you can choose the color that best suits your needs. With a voltage of 24 VDC, this LED indicator provides a bright and consistent illumination. Trust the QS103ZZRYG24 LED Indicator to provide reliable and efficient performance in any setting.
Key Features
- Mounting Hole: 10 mm
- Led Colour: Red/Yellow/Green (10 mm Only)
- Voltage: 24V DC
- Terminals: Wires
- Type Of Illumination: Tri-colour (10mm only)
Specifications
Distinctive Features:
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LEDfor daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
