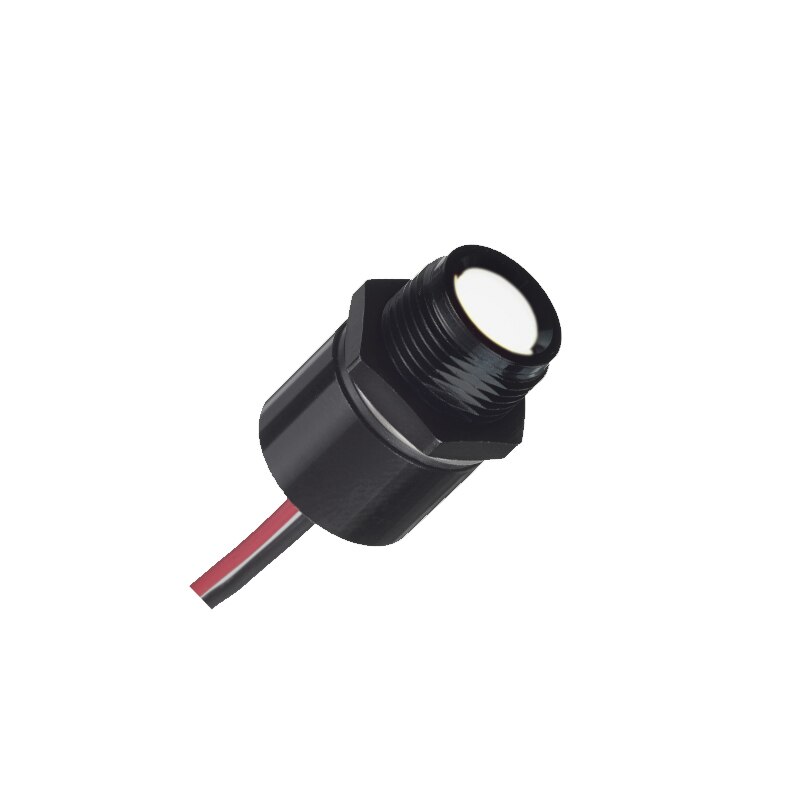

QRM145BXXW12E
Introducing the QRM145BXXW12E LED Indicator, the perfect solution for all your illumination needs. With a sleek black bezel finish, this indicator adds a touch of sophistication to any application. The 14 mm mounting hole ensures easy installation, and the terminals are designed for hassle-free connection with wires. The fixed light illumination provides a steady glow, while the white LED color adds a modern touch. Operating at a voltage of 12 VDC, this indicator is both efficient and reliable. Plus, with its IP67 standard sealing, you can trust that it will withstand even the harshest environments. Upgrade your lighting system with the QRM145BXXW12E LED Indicator today!
Key Features
- Mounting Hole: 14 mm
- Led Colour: White
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Wires
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- IP67 Sealed
- Bi-Color & Tri-Color Options
- 2 to 28 VDC
- 200 mm wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 60°
- Life Expectancy: 100,000 hours
- Max panel thickness: 10 mm
- Torque: 75 cNm
Environmental Specifications:
- Operating Temperature Range: –40 °C to +85 °C
- Storage Temperature Range: –55 °C to +100 °C
- IP67 sealed (EN60529)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.8 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
