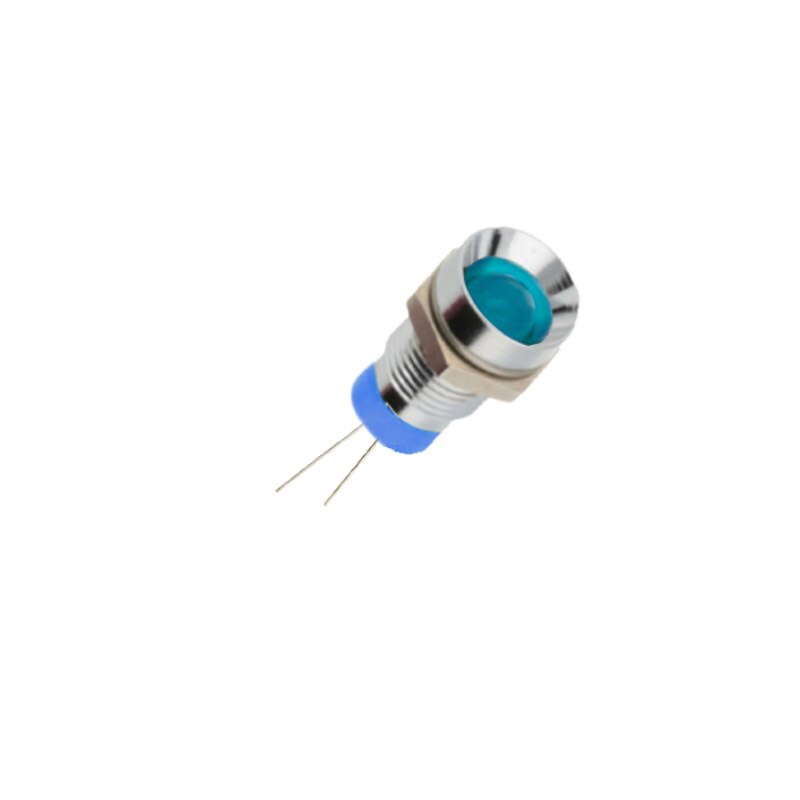

Q8R6CXXSB02E
Panel mount LED indicators with 5mm coloured diffused epoxy lens or 5mm water clear super bright LEDs.
Key Features
- Series: Q
- Sealing: IP67
- Voltage: no resistor
- Led Color: Super Bright Blue
- Terminals: Short body Pins
- Bezel Style: Recessed
- Bezel Finish: Bright Chrome
- Mounting Hole: Ø8 mm
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clear
- super bright LEDs
- Prominent, recessed and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations (2.0 x 0.5) solder lug/faston terminals on
- tri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
Materials:
- 5 mm colored diffused epoxy lens or 5 mm water clear super bright LEDs
- Plated brass bezel finished in bright chrome, black or satin grey and moulded polycarbonate rear body
