Q14F5CXXHG12E

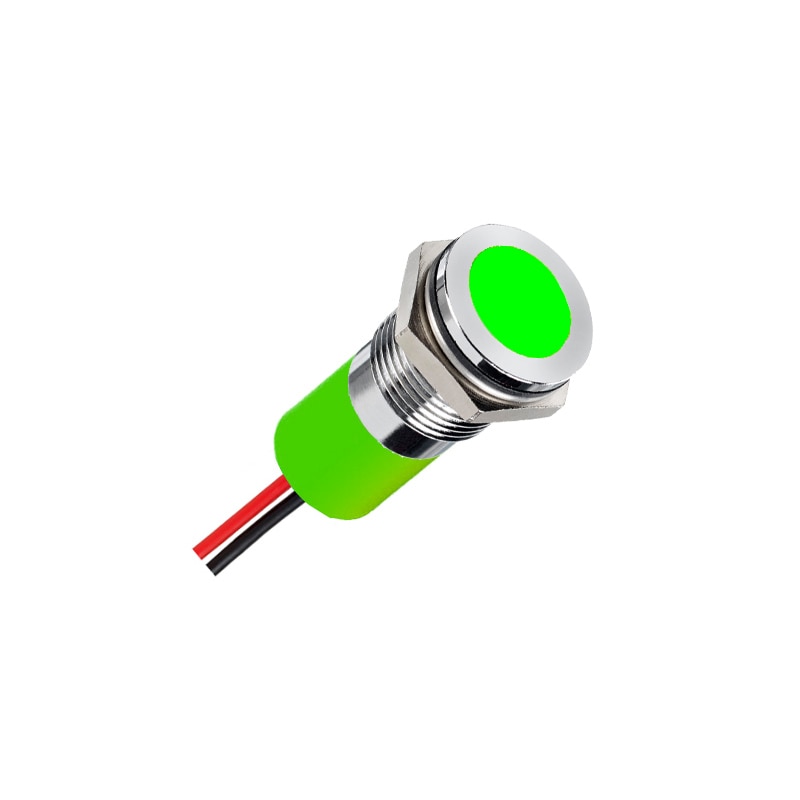

The Q14F5CXXHG12E LED Indicator is a versatile and high-quality product that is perfect for various applications. With a 14mm mounting hole, it can be easily installed in any compatible panel or device. The flush bezel style adds a sleek and modern touch to any design. Featuring rear epoxy wires as terminals, this LED indicator ensures secure and reliable connections. The bright chrome bezel finish not only enhances its appearance but also provides durability and resistance to wear and tear. With fixed light illumination, this LED indicator emits a vibrant hyper bright green light, making it highly visible in any environment. The 12 VDC voltage requirement ensures efficient operation and compatibility with standard power sources. Engineered with an IP67 sealing, this LED indicator is protected against dust and water ingress, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 14mm
- Led Colour: Hyper Bright Green
- Voltage: 12V DC
- Sealing: IP67
- Terminals: Rear Epoxy Wires
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clear
- super bright LEDs
- Prominent and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
