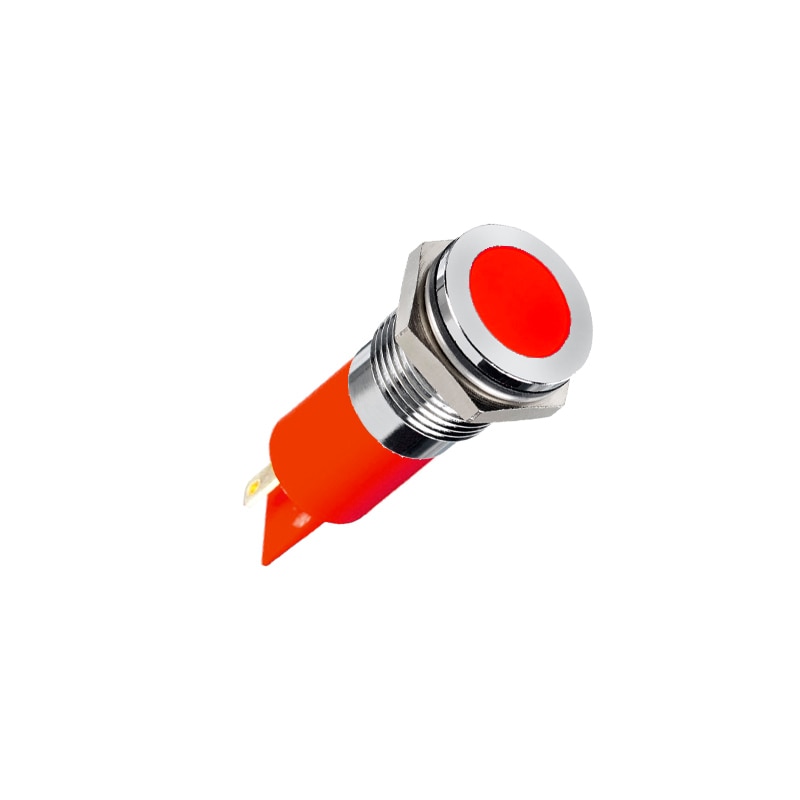

Q14F1CXXR02E
The Q14F1CXXR02E LED Indicator is a versatile and reliable component that can be easily mounted in a 14mm hole. Its sleek flush bezel style adds a touch of sophistication to any application. The indicator features solder lug fastons terminals for secure and efficient connections. With a bright chrome bezel finish, it exudes a polished and professional look. The fixed red light illumination ensures clear visibility in any environment. Operating without a resistor, it is compatible with various voltage requirements. Additionally, its IP67 sealing provides excellent protection against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 14mm
- Led Colour: Red
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Bright Chrome
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clear
- super bright LEDs
- Prominent and flush bezel styles
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
