Q12F1CXXW24A

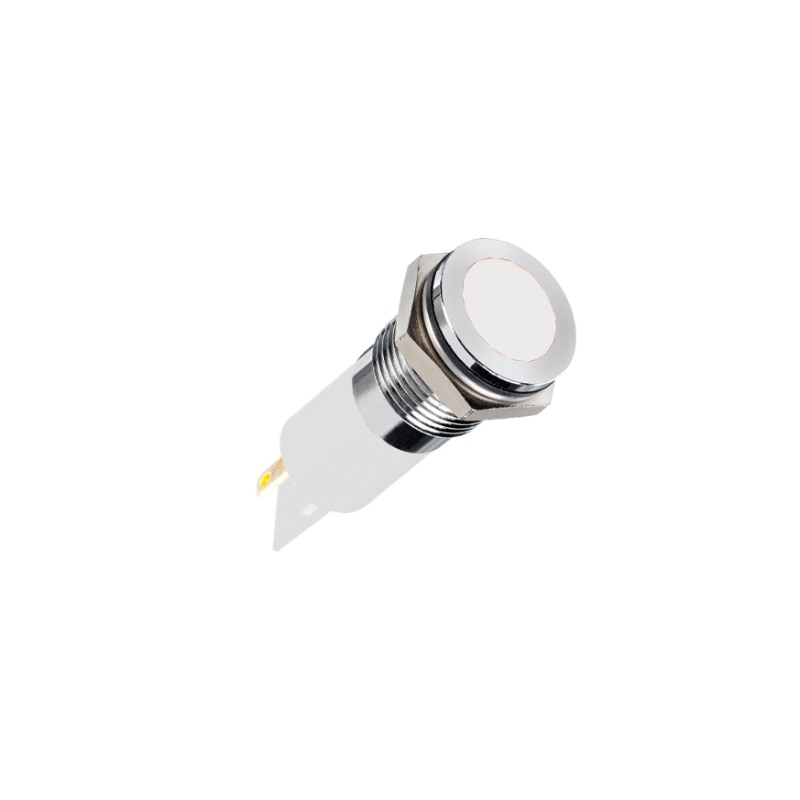

The Q12F1CXXW24A LED Indicator is a versatile and reliable device that is perfect for a wide range of applications. With a 12mm mounting hole, it can be easily installed in various settings. The flush bezel style gives it a sleek and modern look. The solder lug fastons terminals ensure a secure and stable connection. The bright chrome bezel finish adds a touch of elegance to the design. This LED indicator provides fixed white light illumination, making it highly visible and easy to read. With a voltage rating of 24VAC DC, it is compatible with most power sources. Although it is unsealed, the Q12F1CXXW24A is built to withstand various environmental conditions, ensuring reliable performance.
Key Features
- Mounting Hole: 12 mm
- Led Colour: White
- Voltage: 24VAC/DC
- Sealing: Unsealed
- Terminals: Solder lug fastons (28 x 08)
- Bezel Finish: Bright chrome
- Type Of Illumination: Fixed light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clear
- super bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)
- wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
