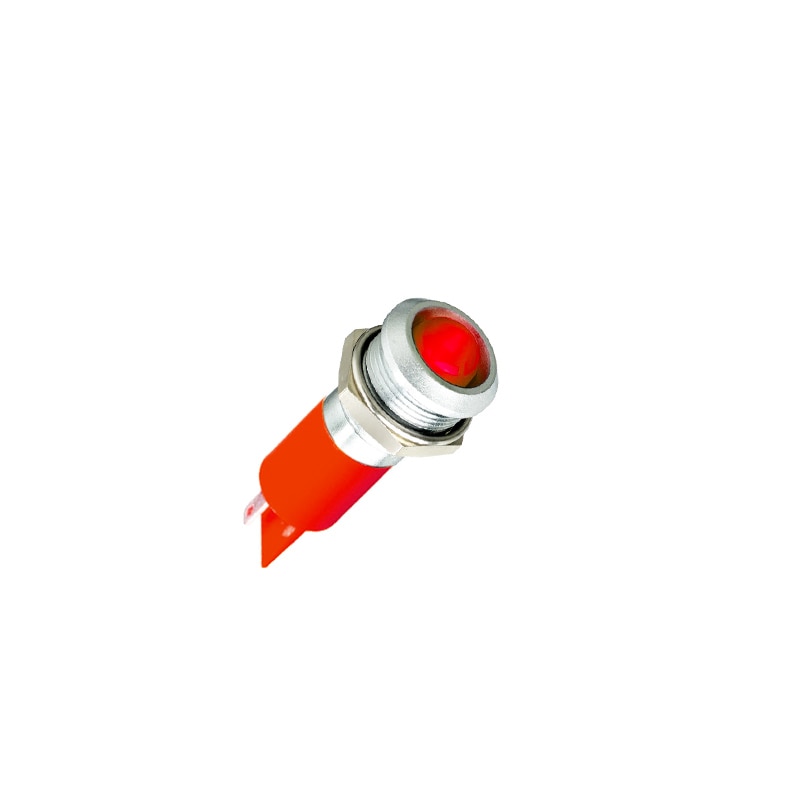

Q12-7P1CXXHR12E
The Q12-7P1CXXHR12E LED Indicator is a versatile and reliable lighting solution for various applications. With a mounting hole diameter of 127 mm, it can easily be integrated into any system. The prominent bezel style adds a touch of elegance to the design. Equipped with solder lug fastons 28 x 08 terminals, installation is quick and hassle-free. The bright chrome bezel finish further enhances the visual appeal of the indicator. Emitting a fixed light, it provides consistent illumination. The hyper bright red LED color ensures clear visibility even in bright environments. Operating at a voltage of 12 VDC, it is compatible with most power sources. With an IP67 sealing, it is protected against dust and water, making it suitable for both indoor and outdoor use.
Key Features
- Mounting Hole: 12.7 mm
- Led Colour: Hyper bright red
- Voltage: 12VDC
- Sealing: IP67
- Bezel Finish: Bright chrome
- Type Of Illumination: Fixed light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs
- 2VDC - 220VAC
- (2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Mode
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
