TW18BLK11

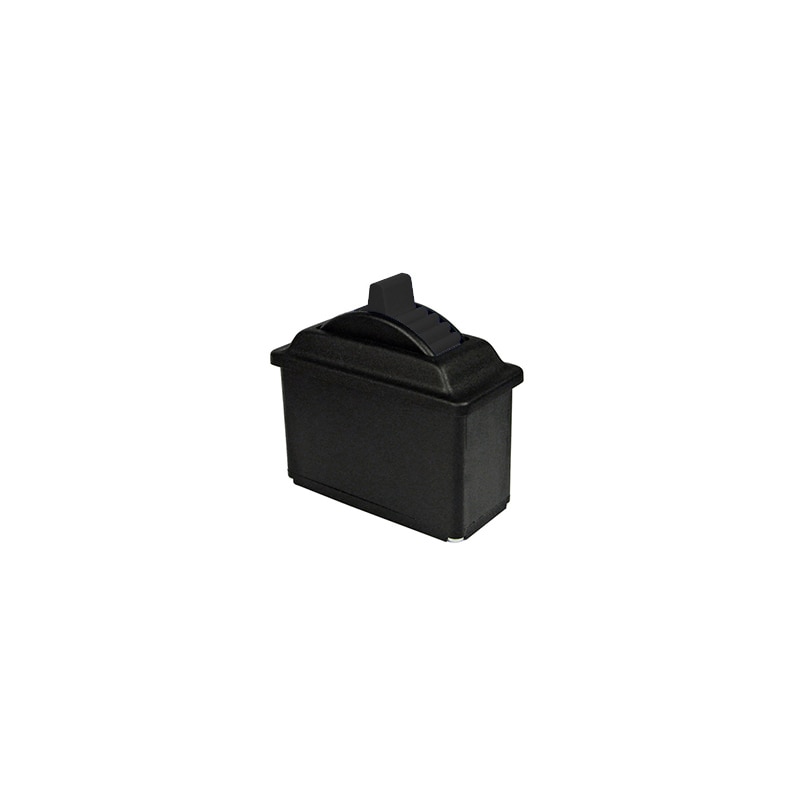

The TW Series Thumbwheel is a minimum width, low profile joystick that provides smooth, precise fingertip control in one axis.
Key Features
- Series: TW
- Termination: 1
- Spring Tension: Standard
- Output Options: 0.5V to 4.5V - Sensor 1 4.5V to 0.5V - Sensor 2
- Model: Without tab
- Actuator Color: Black
Specifications
Distinctive Features:
- Analog outputs
- Spring return to center
- Choice of 4 wheel colors
- 5 million lifecycles
- Electronics sealed up to IP67
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Submersible to 1m (3.28ft) per IP68
- Pressure washable to IP69K
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
- Storage Temperature: -40ºC to +85ºC (-40ºF to +185ºF)
- Sealing: IP67*
- EMC Immunity Level: EN61000-4-3 (extended)
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2 (extended)
Electrical Specifications:
- Sensor: Hall effect
- Resolution: 1.22mV
- Supply Voltage Range: 5V ± .250V
- Reverse Polarity Max: -10V
- Overvoltage Max: 20V
- Output Impedance: 2Ω
- Return to Center Voltage (No Load): ±200mV
- Error Signal: 1.0%
Materials:
- Glass filled nylon
Mechanical Specifications:
- Break Out Force: 0.7N (0.15lbf)
- Mechanical Angle of Movement: 80º (±40º from center)
- Expected Life: 5 million cycles
- Lever Action (Centering): Spring centering
