TS3R3S14A

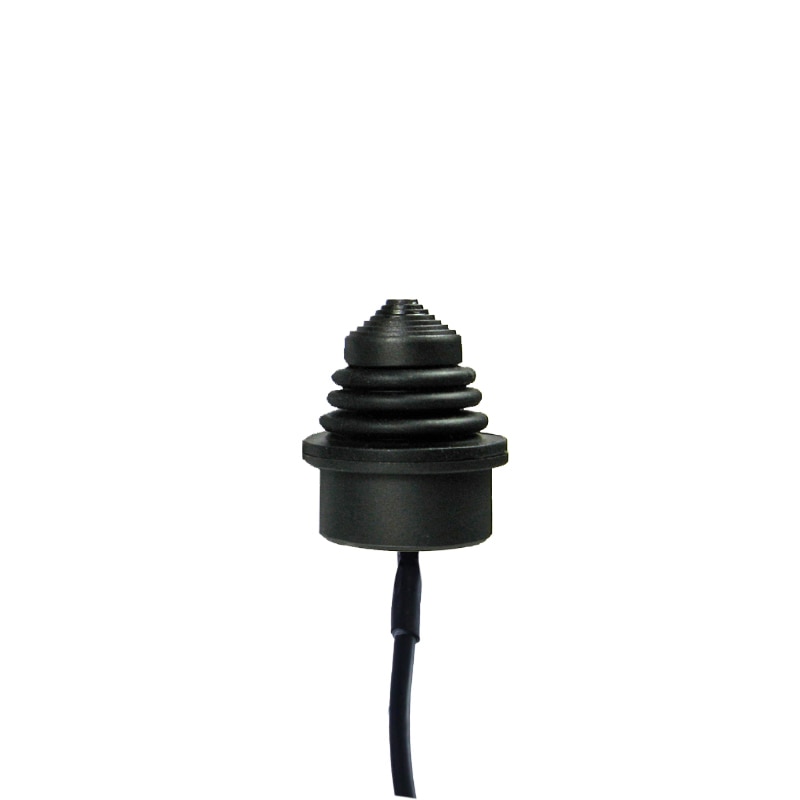

The TS3R3S14A Joystick, also known as the Conical Handle, is designed for a seamless gaming experience. Its rear mount allows for easy installation, while the 72 Overmold Cable with USB Male Type Connector ensures a reliable and fast connection. The Square Limiter provides precise control, and the USB Game Controller output ensures compatibility with various devices. With LED Control and customizable LED colors, the TS3R3S14A Joystick adds a touch of style to your gaming setup.
Key Features
- Limiter: Square
- Power: Single
- Termination: 72 Overmold Cable with USB Male Type Connector
- Mounting: Rear
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
