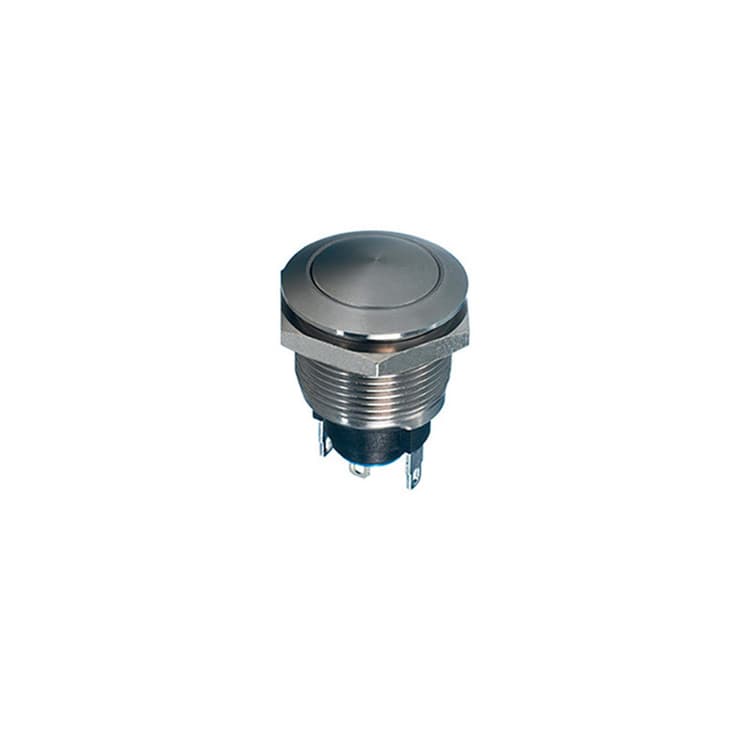

AV - 19-22 - latching
The AV Series pushbuttons offer attractive, robust and durable switches, available with different bushing diameters, actuator shapes, bushing and actuator materials.
Main features
- Security pushbutton switches
- Latching
- Actuator and bushing : nickel plated, chrome plated, varnished polishedor stainless steel
- Flat or curved actuator available
- Illuminated or non-illuminated
- Front panel sealing IP65 in option


Key Features
• Torque : 1.5 Nm min.- 4 Nm max. applied to nut
• Panel thickness : 1 (.039) to 9 mm (.354) max.
• Low level or mechanical life : 1,000,000 cycle
• Hand soldering : 300 °C, 4 seconds max.
• Panel cut-out : Ø 19,2 mm (.755) or Ø 22,2 mm (.874)
• Min. pitch for matrix mounting : 30 mm x 30 mm (1.181 x 1.181)
241 Products
Filters
241 Products
Sort By
- AV - 19-22 - latchingAV09101EA800
- Sealing: Unsealed
- Terminals: Quick Connect
- Illumination: No.
- AV - 19-22 - latchingAV19105EA4K
- Sealing: IP65
- Terminals: PC
- Illumination: No.
- AV - 19-22 - latchingAV031L0EA850
- Sealing: Unsealed
- Terminals: Quick Connect
- Illumination: Illuminated
- AV - 19-22 - latchingAV03106EA810
- Sealing: Unsealed
- Terminals: Quick Connect
- Illumination: No.
- AV - 19-22 - latchingAV09106EA240
- Sealing: Unsealed
- Terminals: Solder Lug
- Illumination: No.
- AV - 19-22 - latchingAV031L6EA440K
- Sealing: IP65
- Terminals: PC
- Illumination: Illuminated
- AV - 19-22 - latchingAV021L3EA440
- Sealing: Unsealed
- Terminals: PC
- Illumination: Illuminated
- AV - 19-22 - latchingAV09103EA850
- Sealing: Unsealed
- Terminals: Quick Connect
- Illumination: No.
- AV - 19-22 - latchingAV19101EA410
- Sealing: Unsealed
- Terminals: PC
- Illumination: No.
- AV - 19-22 - latchingAV191L1EA4K
- Sealing: IP65
- Terminals: PC
- Illumination: Illuminated
- AV - 19-22 - latchingAV031L3EA210
- Sealing: Unsealed
- Terminals: Solder Lug
- Illumination: Illuminated
- AV - 19-22 - latchingAV09101EA2
- Sealing: Unsealed
- Terminals: Solder Lug
- Illumination: No.
Showing 1~ 12 of 241 Products
...
