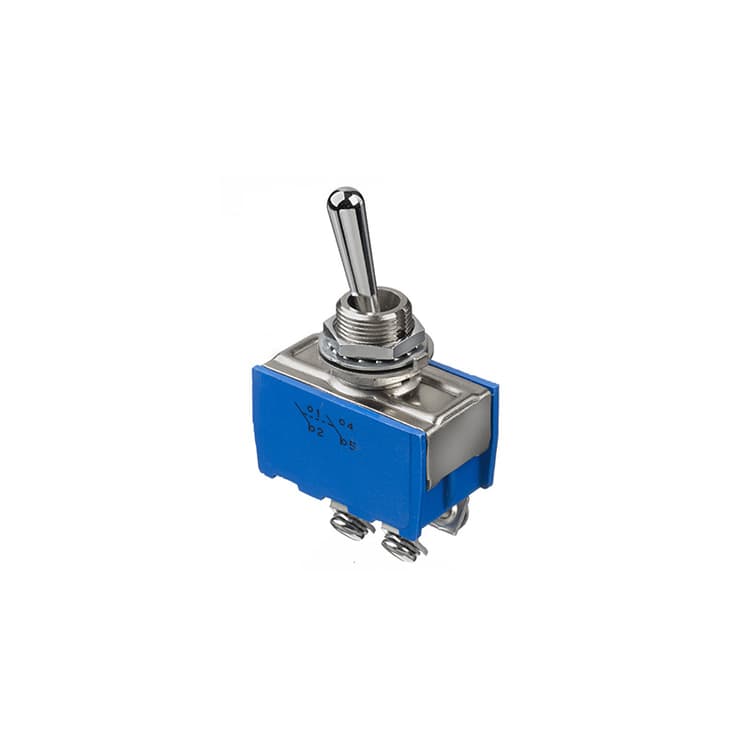

3639NF/2
Toggle switches are in 1 and 2 pole configurations
Key Features
- Terminals: Solder lug / quick-connect
- Series: 36
- Number Of Poles: Single pole
- Electrical Functions: ON OFF ON
Specifications
Distinctive Features:
- Sealed to IP67
- Solid silver contacts
- UL approved
General Specifications:
- Sealing to IP67 according to IEC 60529
- Torque : 1,50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness : 2 mm (.079) max. with all accessories
Environmental Specifications:
- Operating temperature : -40°C to +85°C
Electrical Specifications:
- Max. current/voltage rating with resistive load : 12A 28VDC
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1.000 MΩ min. at 500VDC
- Dielectric strength : 2.500 Vrms 50 Hz min. between terminals 3.000 Vrms 50 Hz min. between terminals and frame
- Electrical life : 10.000 cycles at full load
Materials:
- Case : phenolic resin
- Actuator : brass, nickel plated
- Bushing : brass, nickel plated
- Contacts : solid silver
