QS101XXO24

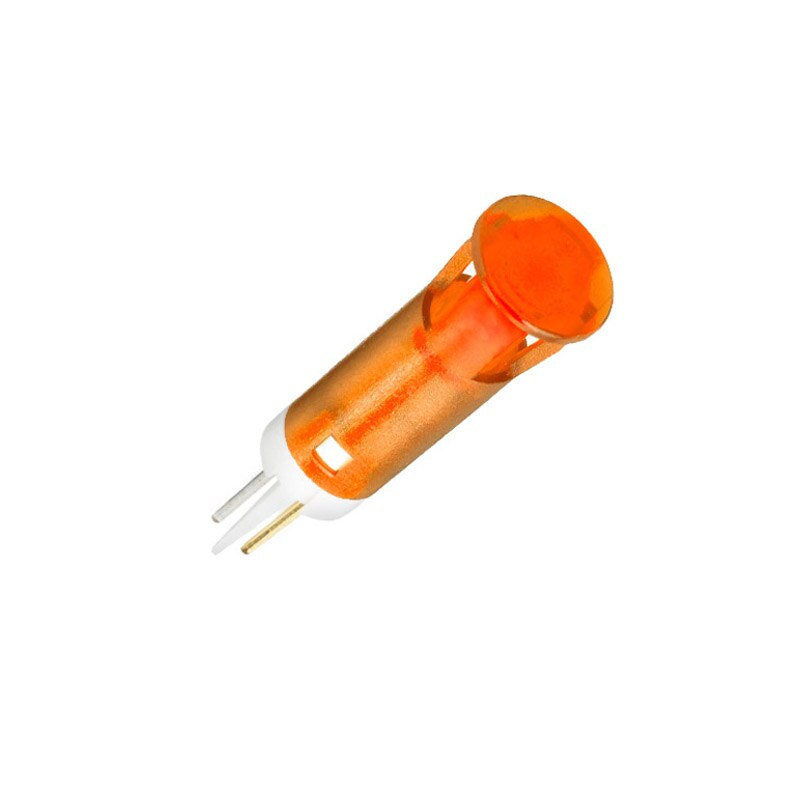

Introducing the QS101XXO24 LED Indicator, the perfect solution for all your signaling needs. With its sleek design and advanced technology, this LED indicator is sure to catch your attention. Its mounting hole diameter of 10mm ensures easy installation and compatibility with various applications. Equipped with solder lug faston terminals, it guarantees a secure and reliable connection. The fixed light illumination provides a steady and clear indication. The vibrant orange LED color adds a touch of brightness to any setting. Operates at a voltage of 24 VDC, delivering consistent performance and efficiency.
Key Features
- Mounting Hole: 10 mm
- Led Colour: Orange
- Voltage: 24V DC
- Terminals: Solder Lug Faston
- Type Of Illumination: Fixed Light
Specifications
Distinctive Features:
- 6 mm, 8 mm, 10 mm and 12 mm Ø cut-out sizes
- Front panel snap-in mounting requires no additional hardware
- Standard intensity diffused LED or high brightness LED
- for daylight viewing
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° (dependant on model)
- Life Expectancy: 100,000 hours
- Operating Temperature Range: –30 to +65°C
Electrical Specifications:
- 02 (No Resistor) 1.8 to 2.5VDC 20mA max*
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
- 110VAC (not available on QS6) 99 to 110VAC 6mA
- 220VAC (not available on QS6) 207 to 253VAC 3mA
