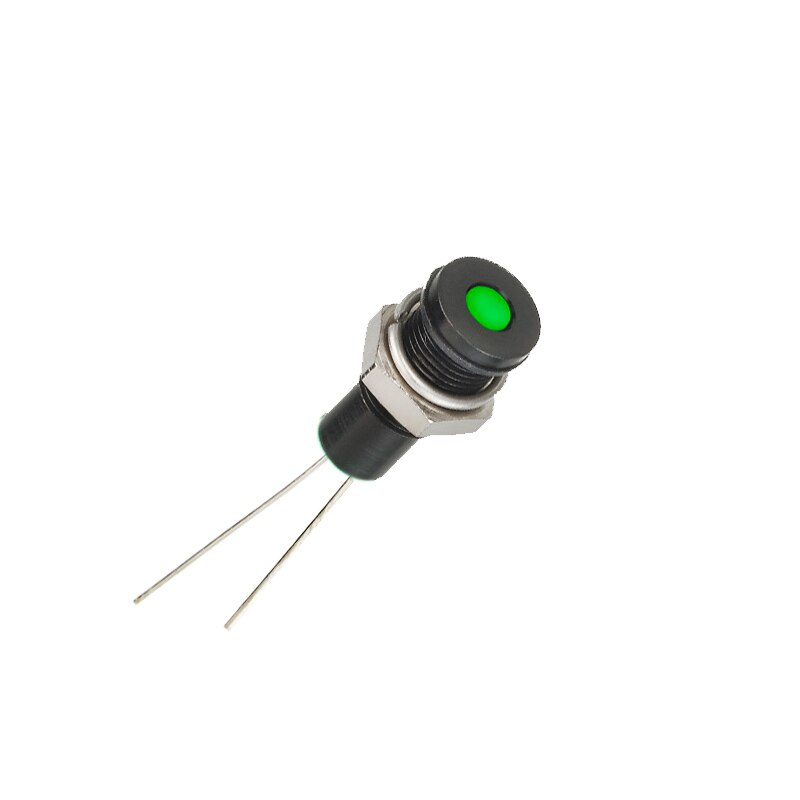

Q6F6BXXHG02E
The Q6F6BXXHG02E LED Indicator is a versatile and high-quality product designed for various applications. With a 6 mm Mounting Hole, it can be easily installed in different settings. Its sleek and modern Flush Bezel Style adds a touch of elegance to any equipment. The Short body Pins Terminals ensure a secure and efficient connection. The Black Bezel Finish gives it a sophisticated look. This LED Indicator provides Fixed Light illumination, allowing for clear and consistent signaling. Its Hyper Bright Green LED color guarantees excellent visibility. With no resistor required, it operates at a Voltage of your choice. Additionally, it is sealed to IP67 standards, ensuring durability and protection against dust and water.
Key Features
- Mounting Hole: 6 mm
- Led Colour: Hyper Bright Green
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Short Body Pins
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
General Specifications:
- Max Reverse Voltage: 5V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40°C to +85°C *
- Torque: 4cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
Electrical Specifications:
- (No Resistor) 1.8 to 3.8VDC 20mA max
- 6VDC 5.4 to 6.6VDC 20mA
- 12VDC 10.8 to 13.2VDC 20mA
- 24VDC 21.6 to 26.4VDC 20mA
- 28VDC 25.2 to 30.8VDC 20mA
