TS4R1S08A

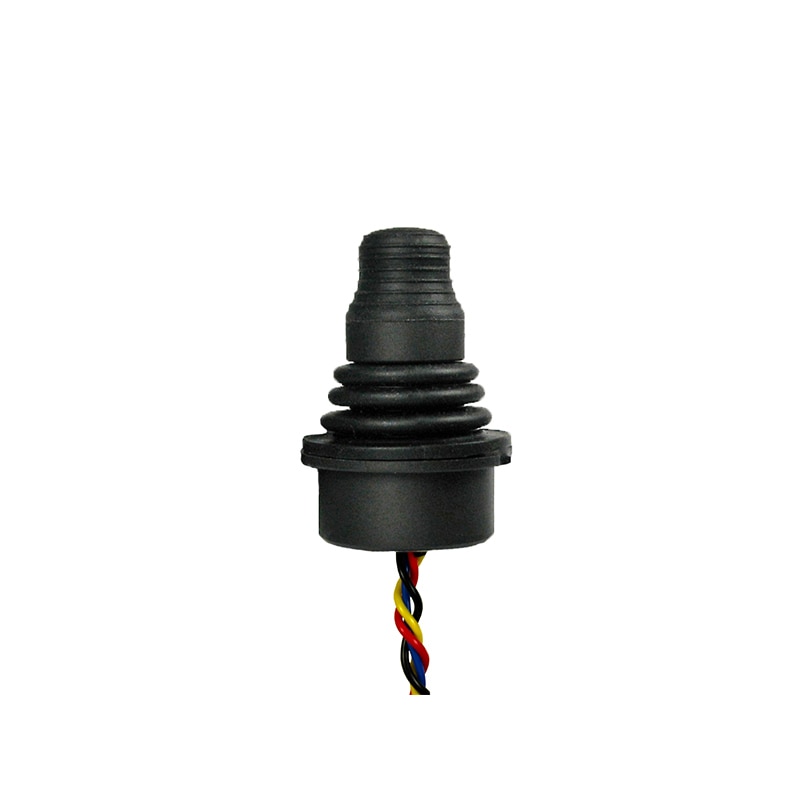

The TS4R1S08A Joystick is designed to provide precise control and seamless operation. With its ergonomic handle (also known as a finger tip), it offers a comfortable grip for extended use. The rear mount installation allows for easy and convenient setup. The square limiter ensures smooth movement and prevents overextension. The joystick features a 0 V to 5 V output, allowing for accurate position sensing with Sensor 1, and a 5 V to 0 V output for Sensor 2. The LED control enables customizable lighting effects, while the LED color can be adjusted to suit personal preferences. Experience superior performance and reliability with the TS4R1S08A Joystick.
Specifications
Distinctive Features:
- Process sealed
- Single piece case
- Front and rear sealing
- Wide variety of contact materials
- Same PCB layout as TL, TP and TG subminiature switches
General Specifications:
- 1 or 2 axis
- USB outputs available
- Non-contact Hall effect technology
- Pushbutton & LED options
- IP67 Above panel sealing
- Redundant outputs available
- Rear or drop-in mounting available
Environmental Specifications:
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +85°C (-40°F to +185°F)
- Sealing: IP67
- EMC Immunity Level: EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
Electrical Specifications:
- Technology: Hall effect sensors, single or dual
- Supply Voltage Range: 5.00V±0.01V
- Supply current: 11mA max
- Ratiometric output options: see options
- Reverse Polarity Max: -10V
- Transient overvoltage Max: 16V
- Start-up time: 15ms max
- Output Impedance: 2Ω
- Return to Center Voltage Tolerance: ±200mV initial
