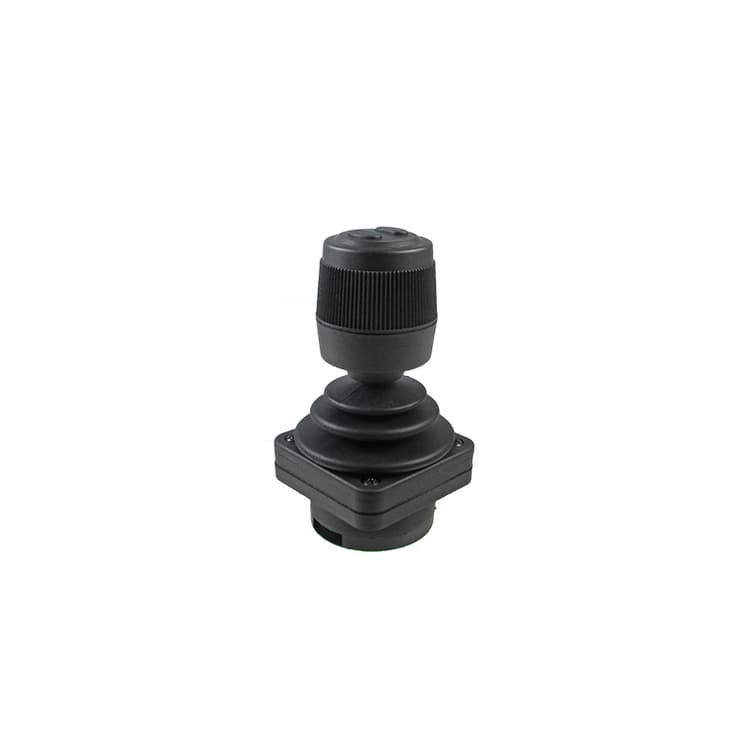

HF55R10
The HF55R10 Joystick (Part Number) is a versatile and reliable controller for various applications. With its sturdy Handle (English), Poignée (French), Handgriff (German), and 控制杆 (Chinese), it provides precise control over 3 axes and features 2 conveniently placed Pushbuttons (English), Limiteur (French), Limiter (German), and 限制器 (Chinese). Designed to withstand harsh environments, it is IP67 sealed, ensuring protection against dust and water. The Limiter (English), Limiteur (French), Limiter (German), and 限制器 (Chinese) feature adds an extra layer of safety. The Joystick is easy to install with its Drop-in (English), Montage (French), Montageart (German), and 安装 (Chinese) design. Additionally, it offers flexible Output Options (English), Options de sortie (French), Ausgabeoptionen (German), and 输出选项 (Chinese), with 0V and 5V options available. Upgrade your control system with the HF55R10 Joystick for enhanced accuracy and reliability.
Key Features
- Series: HF
- Handle: 3 Axis, 2 Pushbuttons,IP67 sealed
- Mounting: Drop-in
- Limiter Plate: Round
- Output Options: 0V-5V
Specifications
Distinctive Features:
- One, two or three axis
- Analog outputs
- CAN bus J1939 and CANopen options
- USB 2.0 HID interface options
- Connectorized housing
General Specifications:
- Break Out Force: 1.3N (0.3lbf)
- Operating Force: 2.8N (0.63lbf)
- Maximum Applied Force: 200N (45.00lbf)
- Mechanical Angle of Movement: 36º (18º from center)
- Expected Life: 5 million
- Package Size: 5.75” x 4.50” x 3.25”
- Lever Action: Single spring, omnidirectional
Environmental Specifications:
- Operating Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Storage Temperature: -40ºC to 85ºC (-40ºF to 185ºF)
- Sealing (IP): Up to IP68*
- EMC Immunity Level (V/M): EN61000-4-3
- EMC Emissions Level: EN61000-6-3:2001
- ESD: EN61000-4-2
- Output linearity: ±200mV
- Dual output interlinearity (X/Y): ±400mV
- Dual output interlinearity (Z): ±600mV
Electrical Specifications:
- Sensor: Hall effect, single or dual
- Supply Voltage Range: 5VDC±0.01VDC
- Supply Current: 40mA typical / 50mA max (3 axis)
- Reverse Polarity Max: -10VDC
- Transient Overvoltage Max: 16VDC
- Ratiometric Output Voltage: See options
- Output Current: 8mA
- Output Load: 1K ohm min
- Output Impedance: 2Ω
