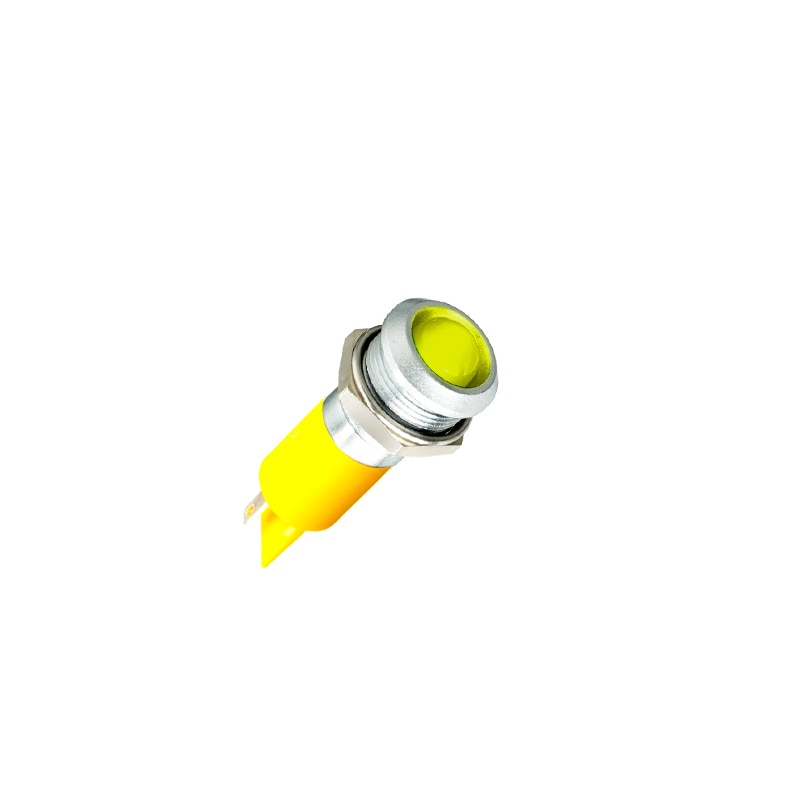

Q12P1CXXHY220E
The Q12P1CXXHY220E LED Indicator is the perfect solution for all your indication needs. With a 12mm mounting hole, it can easily be installed in any application. The prominent bezel style adds a touch of elegance to your design. The solder lug fastons terminals ensure a secure and reliable connection. The bright chrome bezel finish adds a sleek and modern look to the indicator. With fixed light illumination, you can trust that your indicator will always be visible. The hyper bright yellow LED color provides a clear and vibrant indication. Operating at 220VAC, this indicator is suitable for a wide range of applications. And with an IP67 sealing rating, you can rely on its durability and protection against dust and water.
Key Features
- Mounting Hole: 12 mm
- LED Color: Hyper bright yellow
- Voltage: 220VAC
- Sealing: IP67
- Bezel Finish: Bright chrome
- Type Of Illumination: Fixed light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
