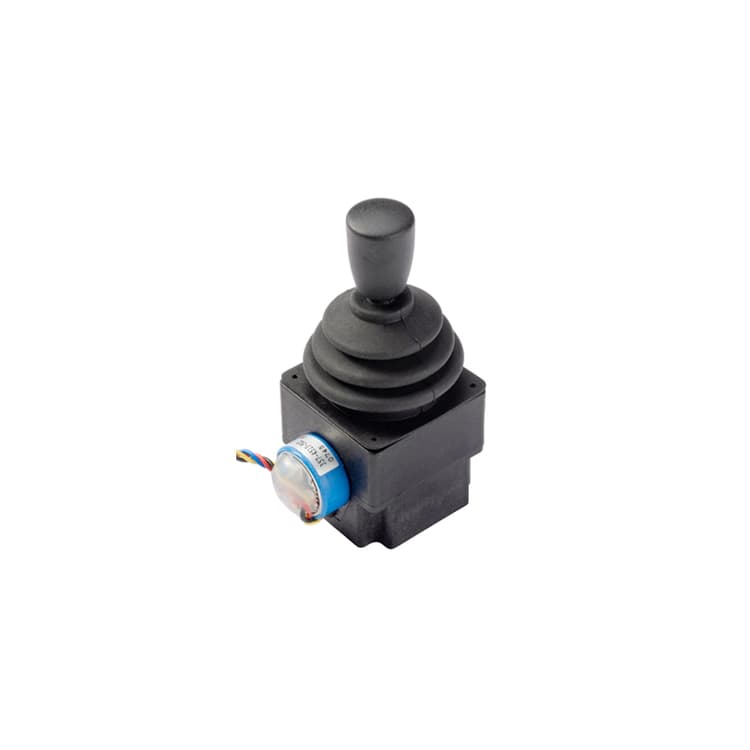

4R28-2-S-1-BL0100
La Série 4000 propose des joysticks robustes et étanches à potentiomètre.
Caractéristiques principales
-
Axis:
Two
-
Body:
Closed
-
Boot:
Internal¹
-
Pots:
5K 55°
-
Bezel:
None
-
Series:
4
-
Spring:
Standard
-
Modifier:
None
-
A:
-2-
-
B:
-1-
-
Handle:
Round
Fiche technique
Fichier 3D
Spécifications
Specifications generales:
- Two standard mounting options
- Low current drain
- Variety of potentiometer options
- Robust
- All metal mechanism
- IP65 above panel
- Inherently immune to RFI
- Optional center-detect microswitching
- Available in two body variants
Specifications environnementales:
- Temperature Range: -20°C to +55°C (-4°F to +131°F)
- Linearity: ±2%
- Output Smoothness: 0.1% max.
- Power Rating: 1W at 70°C (158°F) - Derate to 0W at 125°C (257°F)
- Above Panel Seal: IP65 (subject to handle)
Specifications electriques:
- Insulation Resistance: 1000MOhms, 500VDC
Materiaux:
- Lever Material: Stainless Steel
- Body Material: Glass Filled ABS or Steel
- Handle Material: See Guide
- Boot Material: Neoprene or santoprene
- Other Materials: Brass
Specifications mecaniques:
- Life Cycles: > 5 Million Operations
- Angle of Travel: 27.5° (X,Y) and 50° (Z)
