6CJ1NOPR10U09UV11806

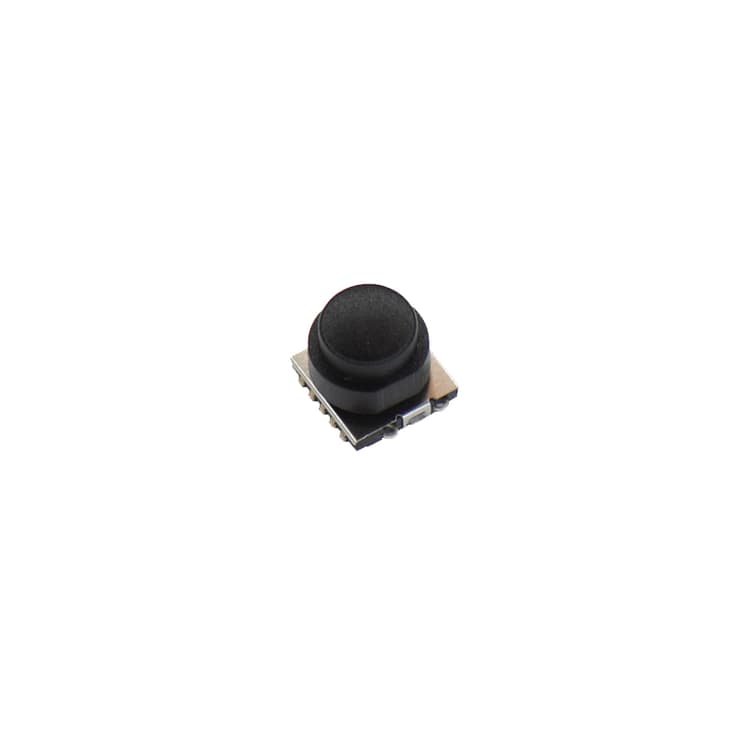

The round 10S cap belongs to the new cap series 10S/10T/10U/10V.
The new series come in three different shapes: round, square and triangle, and can be combined into endless versions to differentiate your front panel, providing the flexibility to make a one-of-a-kind and intuitive panel design. The new caps are designed with a slightly convex top surface and matte finish to give an appealing look and excellent feel for the end user. Floating caps make the alignment of the PCB and the front panel easier and the back part of the caps has been optimized for the use with Ultramec™ switches, providing the end-user with the best tactile feel.
10S cap series is mounted on Ultramec™ 6C series.
Caractéristiques principales
-
Capuchon:
Ø11.5
-
Couleur:
Noir 36 : blanc de signalisation
-
Pôles:
Unipolaire
-
Couleur:
Blanc
-
Impression:
OK
-
Série:
6C
-
Fonction:
Normally open
-
Montage:
Coude en j
-
Packaging:
Bande et bobine
-
Type d'impression:
Uv
-
Broches de positionnement:
Épingles
Fiche technique
Fichier 3D
Spécifications
Specifications generales:
- Ø 6.5 mm
- h=7.5 mm
- Standard colors:-solid colors: blue, grey, red, black & signal white
- Panel cut-out: Ø 6.7 mm
Specifications environnementales:
- Temperature range:-solid cap: -40/+65 °C
Materiaux:
- Cap:-solid color: ABS UL94HB
