SF

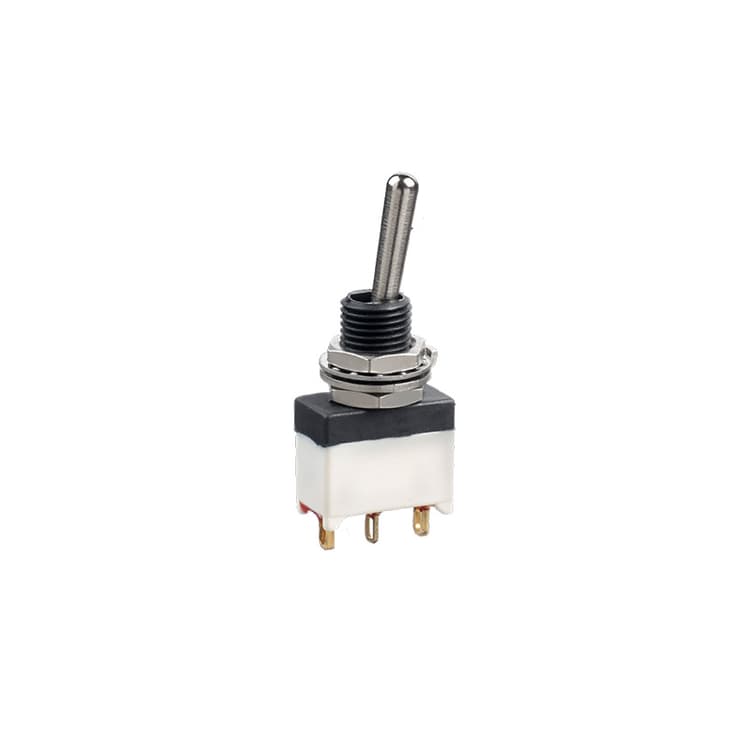

These washable miniature toggle switches with insulated threaded bushing are especially designed for flow soldering at 260 °C during 5 seconds owing to high temperature polymer parts.


Main features :

  • Insulated threaded bushing
  • Process sealed
  • Front and rear sealing
  • Optional ESD protection

A cap U3012 provide additional protection during PCB processing, supplied mounted on the switch or separately. Material : vinyl.

Product detail
Product detail

Key Features

• Mechanical strength : Terminals are strengthened by a bracket or a ground plate ensuring the rigidity of the switch on the board. Actuator strength is 10 N max. • Iron soldering : 300 °C (572 °F) 5 sec. max. • Max. torque : 0.25 Nm (.184 Ft.lb) • Max. panel thickness : 2.5 mm (.098) with 2 nuts, 4 mm (.157) with 1 nut
27 Products
Filters
  1. image placeholder
    SF
    SF39P05000010
    • Model: Standard
    • Levers: Long
    • Terminals: Straight PC
  2. image placeholder
    SF
    SF39P01000010
    • Model: Standard
    • Levers: Long
    • Terminals: Straight PC
  3. image placeholder
    SF
    SF38S01110010
    • Model: Standard
    • Levers: Long
    • Terminals: Solder Lug
  4. image placeholder
    SF
    SF38S00080010
    • Model: Standard
    • Levers: Short
    • Terminals: Solder Lug
  5. image placeholder
    SF
    SF37S02010010
    • Model: Standard
    • Levers: Short
    • Terminals: Solder Lug
  6. image placeholder
    SF
    SF37S02000010
    • Model: Standard
    • Levers: Long
    • Terminals: Solder Lug
  7. image placeholder
    SF
    SF36S00000010
    • Model: Standard
    • Levers: Long
    • Terminals: Solder Lug
  8. image placeholder
    SF
    SF36P02110010
    • Model: Standard
    • Levers: Long
    • Terminals: Straight PC
  9. image placeholder
    SF
    SF36P02010010
    • Model: Standard
    • Levers: Short
    • Terminals: Straight PC
  10. image placeholder
    SF
    SF36P00110010
    • Model: Standard
    • Levers: Long
    • Terminals: Straight PC
  11. image placeholder
    SF
    SF39S011100
    • Model: Standard
    • Levers: Long
    • Terminals: Solder Lug
  12. image placeholder
    SF
    SF39S010000
    • Model: Standard
    • Levers: Long
    • Terminals: Solder Lug

Showing 1~ 12 of 27 Products
