FNRCF4CXX2N1XWRX53XPM

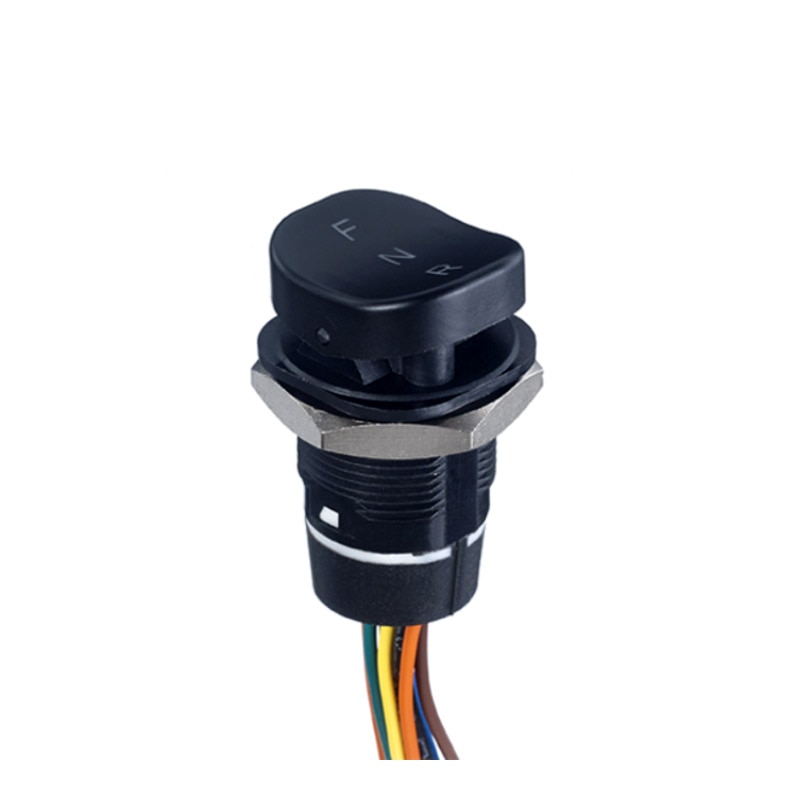

Specifically designed for easy forward & reverse control, this rocker switch provides the utmost in user comfort, guaranteeing maximum efficiency and highly intuitive operation.
Key Features
- Marking Orientation: North
- Symbols: N
- Terminals: Flying leads + Connector
- Actuator Color: Black
- Side B Leds: None
- Contact Materials: Gold plated Silver
- Side A Leds: None
- Actuator Shape: Curved
- Series: FNR
- Symbols: R
- Marking Style Color: White
- Electrical Functions: ON ON ON
- Area A Symbols: F
Specifications
Distinctive Features:
- Ideal for front / neutral / reverse selection
- Easy to install
- Excellent front panel sealing
- Backlit logos
General Specifications:
- Total travel: ± 15°.
- Operating force at center: 5 N ± 1
- Mechanical life: 1.000.000 cycles
Environmental Specifications:
- Operating temperature : -40 °C to +85 °C (-40 °F to +185 °F)
- Panel sealing IP69K according to DIN 40050-9
Electrical Specifications:
- Maximum voltage rating with resistive load: 24 VDC
- Current rating with resistive load: 0.03 to 1 A
- Initial contact resistance: <100 mohms
- Insulation resistance: >10 Gohms at 500 VDC
- Dielectric strength: 1000 Vrms 50 Hz min.
- Electrical life: 1.000.000 cycles at 100 mA , 100.000 cycles at 1 A
Materials:
- Contacts : Gold alloy
- Case : PBT
- Actuator : PA6-6
- Overmoulding: Polyamide
- Output wires (flying leads terminals): AWG24, section 0.23 mm²
