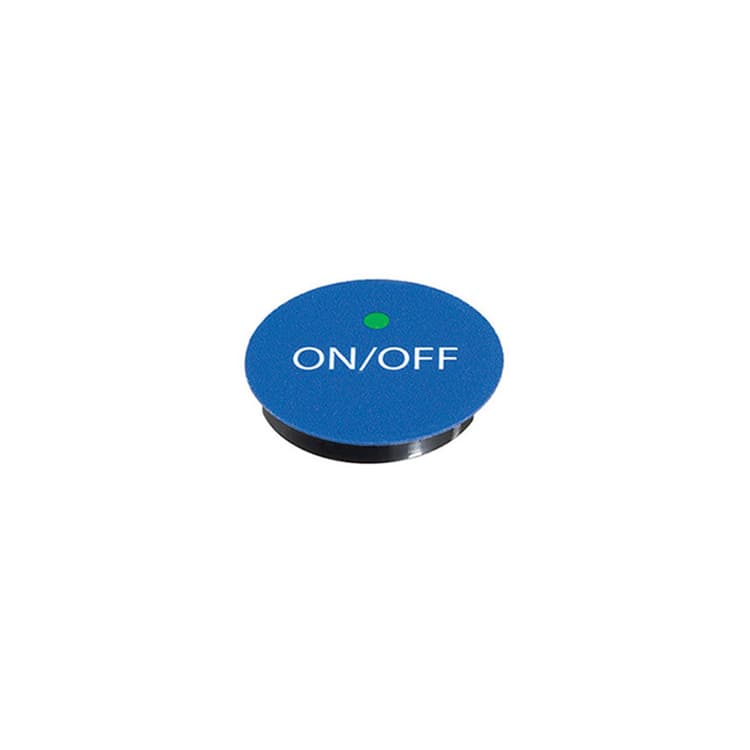

CG211AP0RS
The CG211AP0RS Panel Switch is designed for electrical functions, making it a versatile choice for various applications. With its sleek design and compact size, it seamlessly blends into any panel or control board. The switch features a simple OFF and ON function, providing easy operation. It is equipped with durable terminals, ensuring a secure and reliable connection. The CG211AP0RS is the perfect solution for any project that requires efficient and convenient electrical control.
Key Features
- Terminals: Connector
- Series: CG
- Types Of Illumination Voltage: Dot - 12 VDC
- Sensitivity: Medium (6 mm glass or 4 mm polycarbonate)
- Led Colors: Red
- Surface Adhesive: For common glass or polycarbonate
- Led Functions: Independent
- Electrical Functions: OFF - ON
Specifications
Distinctive Features:
- Activated by the touch of a finger50 million cycles
- Auto-calibration function
- Mounting under non-conductive surfaces
- Mating harness on request
General Specifications:
- Life expectancy : 50 million cycles
Environmental Specifications:
- Triggered by flowing water
- Temperature range : -40 °C to +70 °C
- Adhesive and connector resistant to vibrations
Electrical Specifications:
- Supply voltage : 5 VDC, 12 VDC or 24 VDC
- Supply current : 15 mA max. (12 V)
- Max. current/voltage rating : 200 mA 24 VDC
- Switch resistance ON : 1 Ohm max.
- Power consumption : 10 mA max. mode OFF
- Output type : NPN
