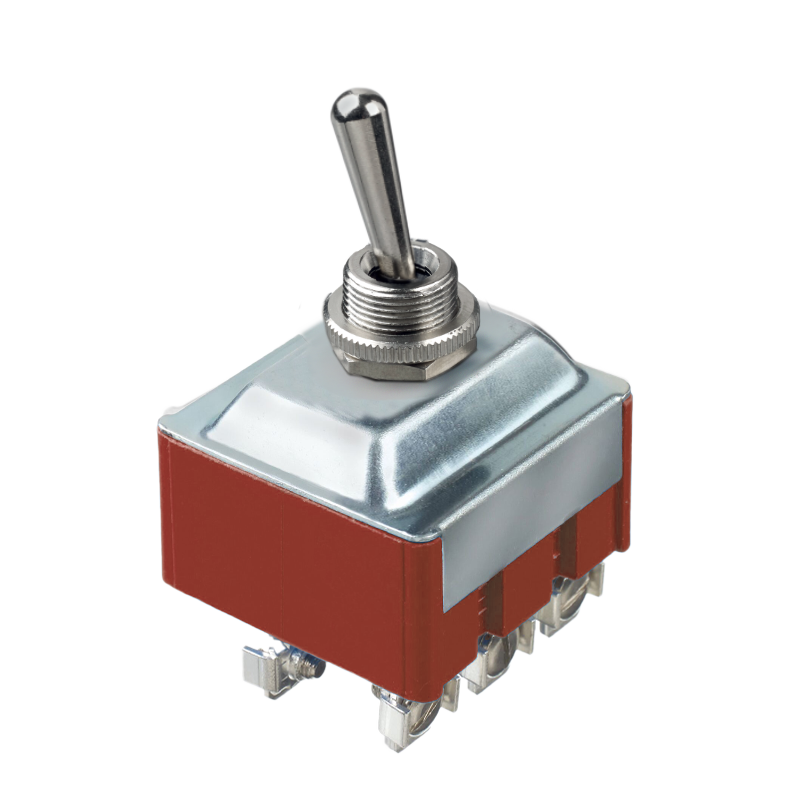

656H
The 656H Panel Switch, with its sleek design and sturdy construction, is a versatile choice for various applications. With three poles, it ensures reliable and efficient electrical connections. Its electrical functions allow for seamless switching between ON and OFF states, providing convenience and ease of use. Whether you need to control lighting, appliances, or other electrical devices, the 656H Panel Switch is a reliable and functional choice.
Key Features
- Number Of Poles: Three Poles
- Actuator And Terminals: Metal Lever Screw Terminals
- Electrical Functions: ON ON
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
