649HTKLUXE

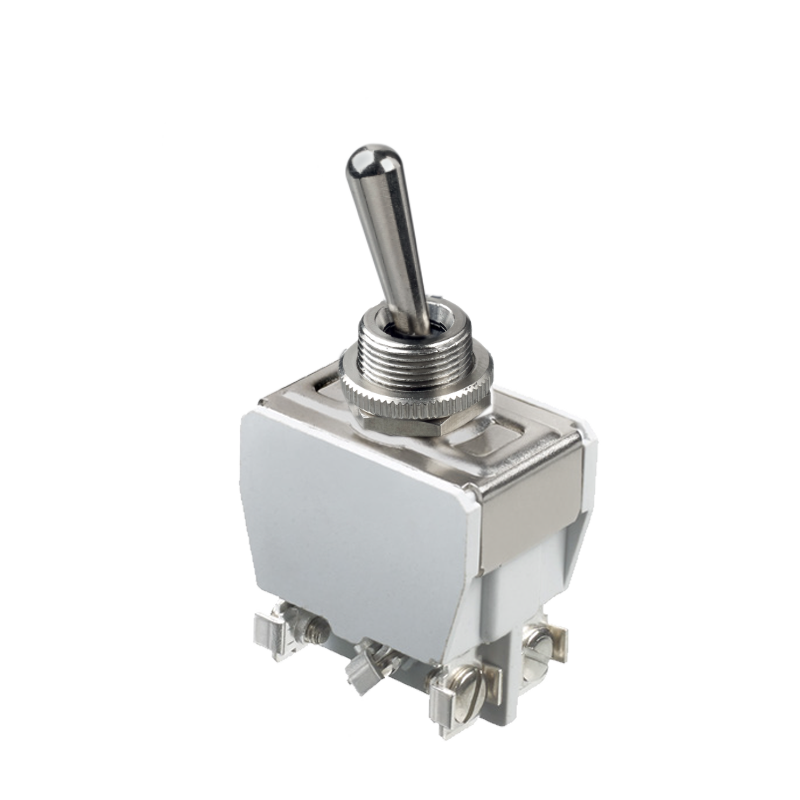

The 649HTKLUXE Panel Switch, also known as the 'Ultimate Toggle,' is a versatile and reliable solution for your electrical control needs. With its sleek design and robust construction, this switch is built to withstand even the toughest conditions.
Wesentliche Merkmale
- Anzahl der Stangen: Doppelpol
- Betätiger und Klemmen: Metallhebel-Schraubklemmen
- Elektrische Funktionen: ON OFF ON
- Optionen: Frontplattenversiegeltes, tropenisiertes Gehäuse mit Chrom-Finish.
Spezifikationen
Allgemeine Spezifikation:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Umgebungsbedingungen:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Elektronische Spezifikationen:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
