649H/2TKLUXE-5

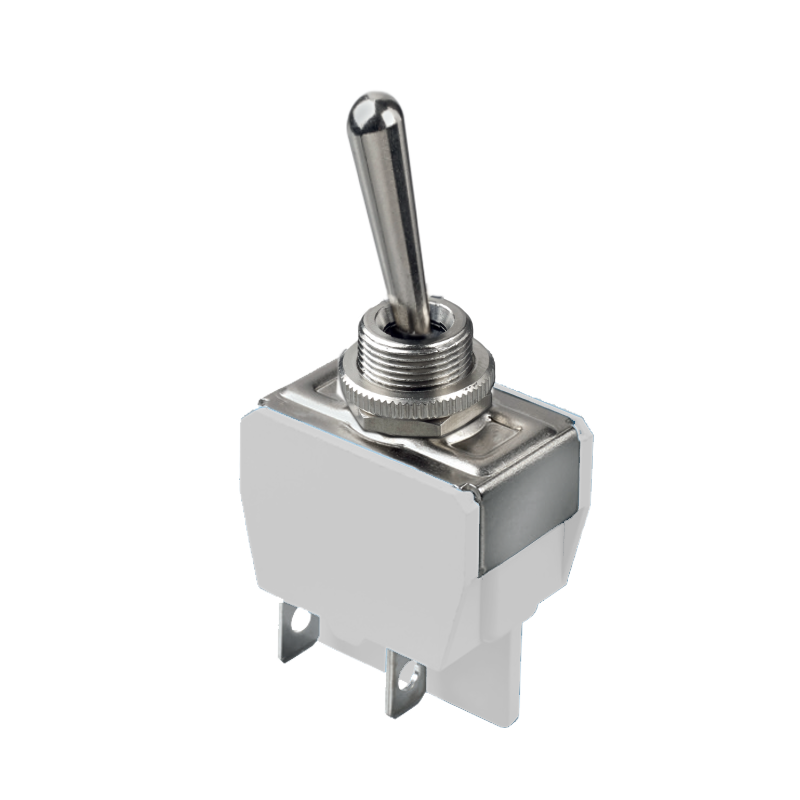

The 649H/2TKLUXE-5 Panel Switch, with its Part Number 649H/2TKLUXE-5, is a versatile and reliable toggle switch that belongs to the Toggles category. With its double pole design, it offers enhanced electrical functionality for various applications. It features metal lever solder lug quick connect terminals, ensuring secure and efficient connections. Enjoy seamless control with its ON OFF ON electrical functions.
Key Features
- Number Of Poles: Double Pole
- Actuator Option: 40mm (1.574in) actuator
- Electrical Functions: ON OFF ON
- Options: Front Panel Sealing and Luxe
- Terminals: Metal Lever Solder Lug Quick Connect Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
