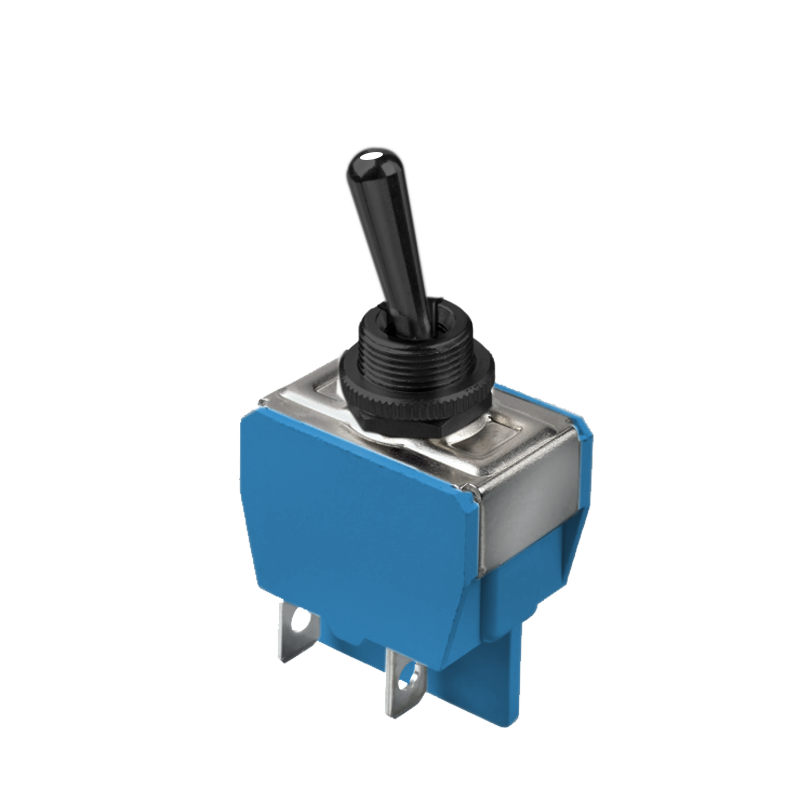

645H/2G-038
The 645H/2G-038 Panel Switch, with its sleek and compact design, is perfect for various electronic applications. With its double pole configuration, it ensures reliable and efficient performance. Whether you need to control lighting, fans, or other electrical devices, this switch has got you covered. Featuring quick-connect terminals with metal lever solder lugs, it offers easy installation and secure connections. Its MOM ON electrical function provides momentary power activation, making it ideal for a wide range of applications. Upgrade your electronic systems with the 645H/2G-038 Panel Switch.
Key Features
- Number Of Poles: Double Pole
- Electrical Functions: MOM ON
- Options: Black Finish Luminous Tip On Lever
- Terminals: Metal Lever Solder Lug Quick Connect Terminals
Specifications
Distinctive Features:
- Robust mechanism
- High current/voltage rating
- Insulated or metal lever
- UL, CSA and NF-VDE (EN 61058-1) approved
General Specifications:
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 4.5 mm (.177) max. between 2 nuts
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C (-20 °F to 131 °F)
Electrical Specifications:
- Max. current/voltage ratings: see full data sheet
- Peak current: 30 A max. during 1/2 sine, 250 VAC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500 VDC
- Dielectric strength:2,000 Vrms 50 Hz min. between terminals2,500 Vrms 50 Hz min. between terminals and frame
- Electrical life: 10,000 cycles at full load
