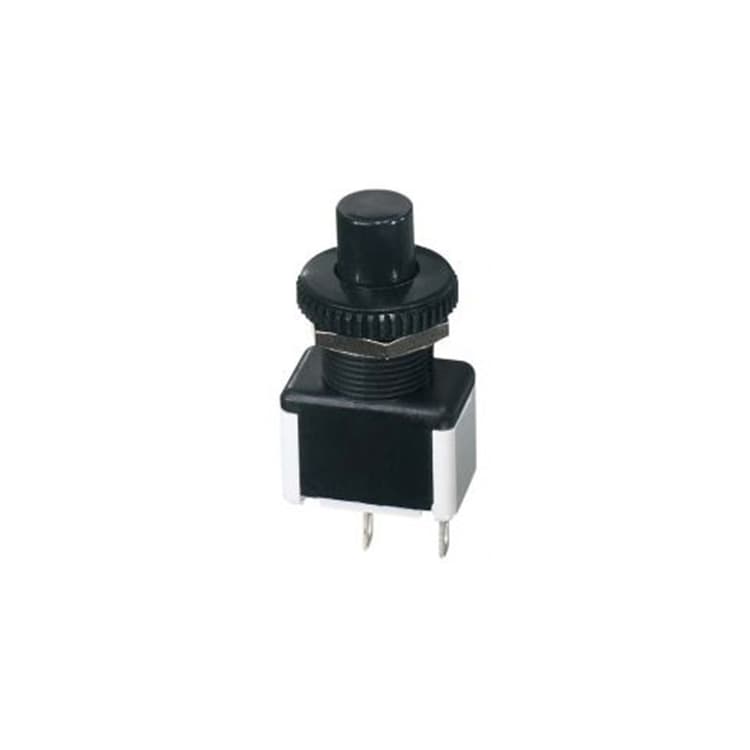

4841A02
The 4841A02 Panel Switch is a versatile and reliable device designed to meet your electrical needs. With its double pole configuration, it offers enhanced performance and stability. Its electrical functions include a simple ON/OFF operation, ensuring easy and efficient control over your electrical circuits. Whether you're in need of a reliable switch for your industrial equipment or home appliances, the 4841A02 is the perfect choice. Trust in its quality and performance to deliver seamless electrical functionality.
Key Features
- Number Of Poles: Double Pole
- Actuator Colors: Black
- Electrical Functions: ON OFF
- Contact Materials: Silver
- Models Terminals: Straight PC Terminals
Specifications
Distinctive Features:
- Momentary or alternate
- Butt action contacts
- UL, CSA and VDE (EN 61058-1) approved
General Specifications:
- Torque : 0.95 Nm (.70 Ft.lb) max. applied to nut
- Panel thickness : 5 mm (.196) max. between 2 nuts
- Total travel : 4.5 mm (.177) +/- 0.5 (.019)
- Hand soldering : 270 °C max. for 10 seconds max. - Iron Ø 3 mm (.118)
Environmental Specifications:
- Operating temperature : -20 °C to +65 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load :- silver contacts (A) : 3 A 250 VAC - 6 A 125 VAC
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength : 2,000 Vrms 50 Hz min. between terminals3,000 Vrms 50 Hz min. between terminals and frame
- Electrical life : 10,000 cycles at full load
