1415NA2

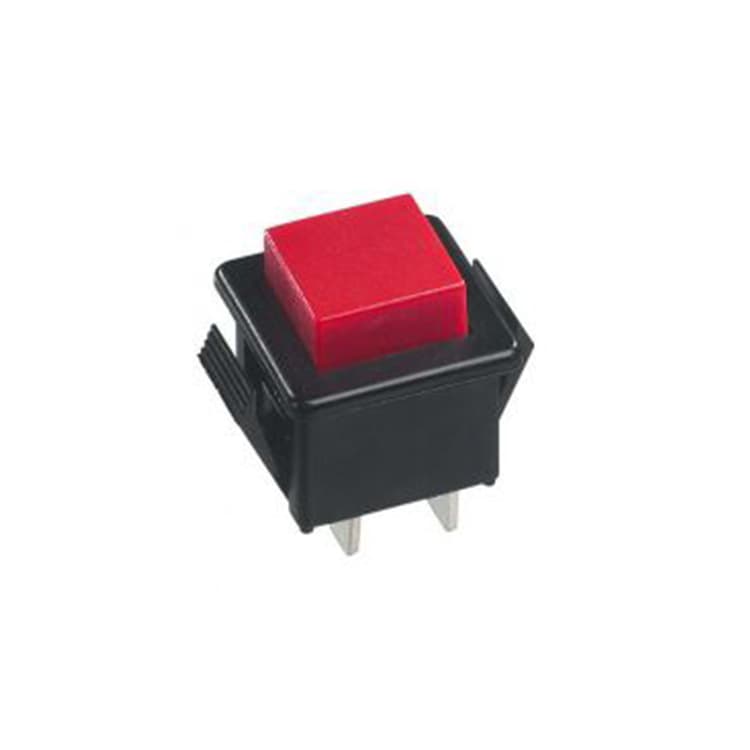

Momentary pushbutton switches with snap-in mouting and square plunger.
Key Features
- Terminals: Solder lug
- Electrical Functions: Changeover
- Contact Materials: Silver
- Model: N
- Plunger Colors: Black
- Series: 14
Specifications
Distinctive Features:
- Butt action contacts, double break
- Solder lug, straight PC and quick-connect terminals
General Specifications:
- Panel thickness : 2 mm (.078) max
Environmental Specifications:
- Operating temperature : -20 °C to +55 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load : - silver contacts (A) : 6 A 12 VDC - silver plated copper contacts (C) : 3 A 12 VDC
- Initial contact resistance : 10 mΩ
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength : 1,500 Vrms 50 Hz min. between terminals 2,000 Vrms 50 Hz min. between terminals and metal panel
- Electrical life : 10,000 cycles at full load
Materials:
- Case : polyamide
- Plunger : polyamide
- Contacts :
- A : silver
- C : gold plated silver
