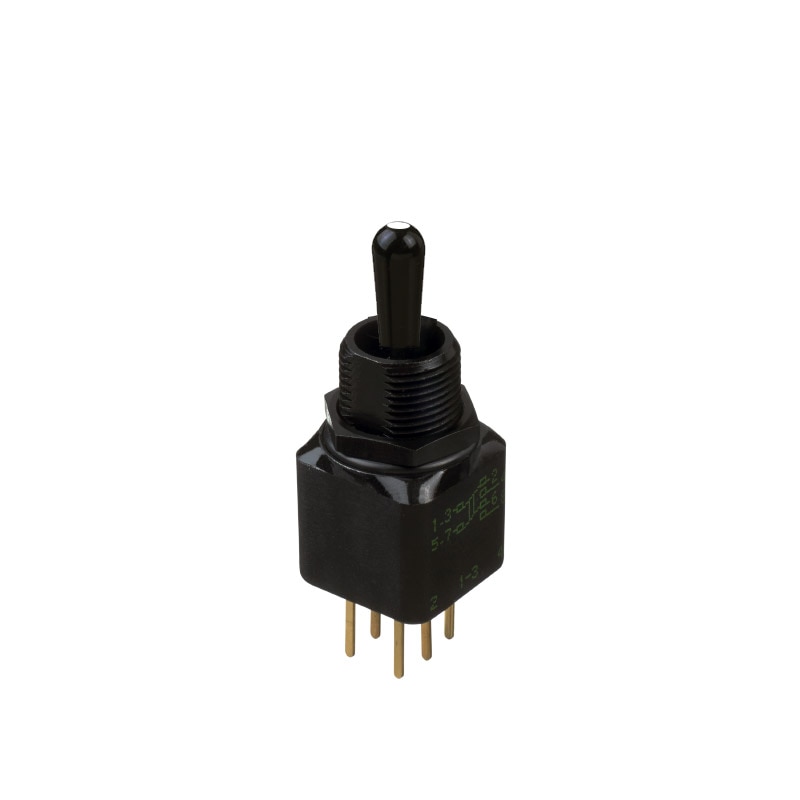

This range of professional toggle switches is suitable for use in military and other high specification environments.CECC and MIL approved.
- Number Of Poles: Double pole
- Electrical Functions: MOM OFF MOM
- Terminals And Bushings: Straight PC terminals
- Series: 12
- Fluorescent Tip: White fluorescent tip to lever
- Levers: Short lever
- CECC approved - conforms to MIL specifications
- Highly reliable contacts
- Pinned lever
- Double shell case for high mechanical strength and highelectrical insulation
- Compact size
- Torque: 1.50 Nm (1.10 Ft.lb) max. applied to nut
- Panel thickness: 8 mm (.314) max. - 3 mm (.118) min.
- Electrical life: - At 4A 28VDC: 20,000 cycles (10,000 for functions 5, 4-1R, 4-2R) - At low level (50mV 10mA): 150,000 cycles (switches with 2 maintained positions) 100,000 cycles (switches with 3 maintained positions) 50.000 cycles (momentary functions 7, 8, 4-1R, 4-2R, 5)
- Shock test: 50g - 11ms (IEC 68-2-27)
- Vibrations: 10-500 Hz - 10g (IEC68-2-6)
- Operating temperature: -40°C to +85°C (-40°F to 185°F)
- Humidity test: 56 days, 93 % R.H., 40°C (IEC 68-2-3)
- Salt spray test: 96 hours (IEC 68-2-11)
- Front panel sealing by two O-rings flatted bush for precise orientation
- Panel seal withstands 1 bar pressure and remains sealed even when the switch is operated.
- Epoxy sealed terminals
- Splash-proof case
- Max. current/voltage rating with resistive load: 4A 28VDC
- Minimum load: 10mA 50mV, 10μA 5VDC
- Initial contact resistance: 10 mΩ max.
- Insulation resistance: 1,000 MΩ min. at 500VDC
- Dielectric strength: 1,000 Vrms 50 Hz min. between terminals 2,000 Vrms 50 Hz min. between poles
- Contact bounce: 2 ms max.
- Case: diallylphthalate (DAP) with plasticexternal shell (epoxy sealed)
- Actuator: brass, black chrome plated
- Bushing: brass, black chrome plated
- Contacts: solid rivet - gold plated silver/nickelalloy
