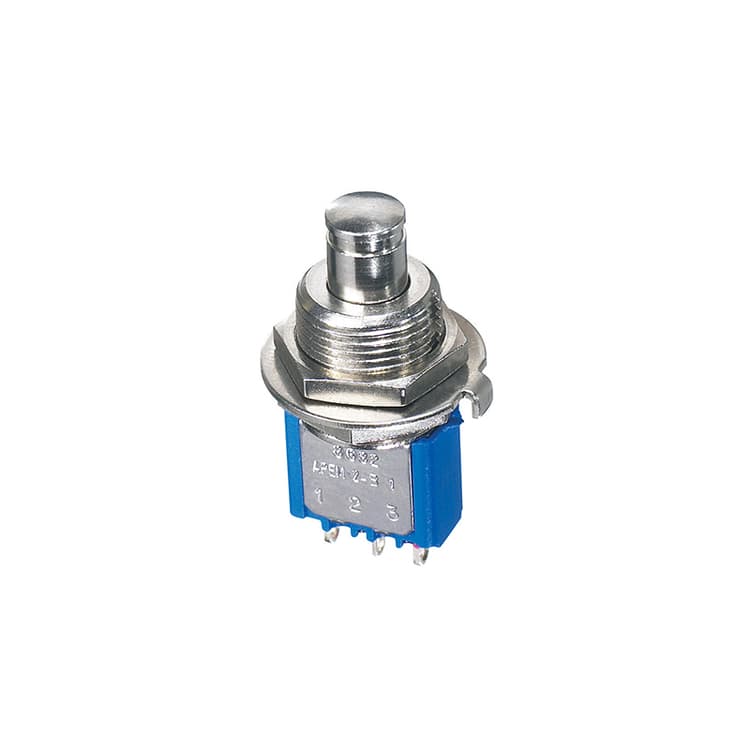

8432WA
Momentary or alternate action pushbutton switches. Button returns in upper position after actuation.
Key Features
- Electrical Functions: ON - MOM
- Number Of Poles: Single pole
- Contact Materials: Silver
- Terminals: Right angle
- Terminals And Bushings: Straight PC or right angle terminals
Specifications
Distinctive Features:
- Momentary or alternate
- Bushing Ø 6.35 (1/4) and Ø 11.9 (15/32)
- UL approved
General Specifications:
- Torque : 1.25 Nm (.922 Ft.lb) max. applied to nut
- Total travel : 2.70 mm (.106)
Environmental Specifications:
- Operating temperature : -40 °C to +85 °C
Electrical Specifications:
- Max. current/voltage rating with resistive load : - silver contacts : 4 A 30 VDC - gold plated contacts : 0.4 VA max. 20 VAC or DC
- Initial contact resistance : 10 mΩ max.
- Insulation resistance : 1,000 MΩ min. at 500 VDC
- Dielectric strength : - 1,000 Vrms 50 Hz min. between terminals - 2,000 Vrms 50 Hz min. between terminals and frame
- Electrical life : 30,000 cycles at full load
Materials:
- Case : diallylphthalate (DAP)
- Actuator : brass, nickel plated
- Bushing : brass, nickel plated
- Housing : stainless steel
- Contacts
- A : silver
- AD : silver, gold plated
- CD : brass, gold plated
- Terminal seal : epoxy
