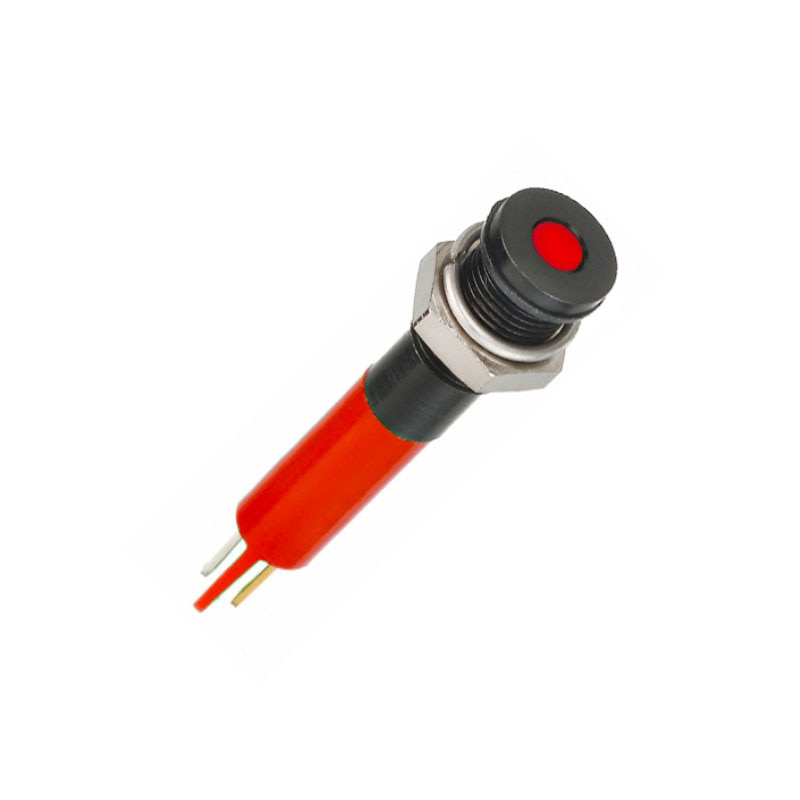

Q8F1BXXSR24
The Q8F1BXXSR24 LED Indicator is a versatile and reliable product that is perfect for a wide range of applications. With its 8 mm mounting hole, it can be easily installed in various equipment. The flush bezel style gives it a sleek and professional look. The solder lug fastons terminals ensure secure and efficient connections. The black bezel finish adds a touch of sophistication. The fixed light illumination provides a steady and clear indication. The super bright red LED color is highly visible even in bright environments. With a voltage of 24 VDC, it is compatible with standard power supplies. Although it is unsealed, it is still durable and can withstand normal operating conditions.
Key Features
- Mounting Hole: 8 mm
- LED Color: Super Bright Red
- Voltage: 24VDC
- Sealing: Unsealed
- Terminals: Solder Lug Fastons (2.8 x 0.8)
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Flush
Specifications
Distinctive Features:
- 5mm colored diffused epoxy lens or 5 mm water clearsuper bright LEDs
- Prominent, recessed and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations (2.0 x 0.5) solder lug/faston terminals ontri-color versions
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 20 to 25 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max*
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
