Q8 High Contrast

High contrast LED indication is designed for applications when a sharp focus is needed. The unmistakable ON/OFF status improves viewer certainty in safety critical applications.

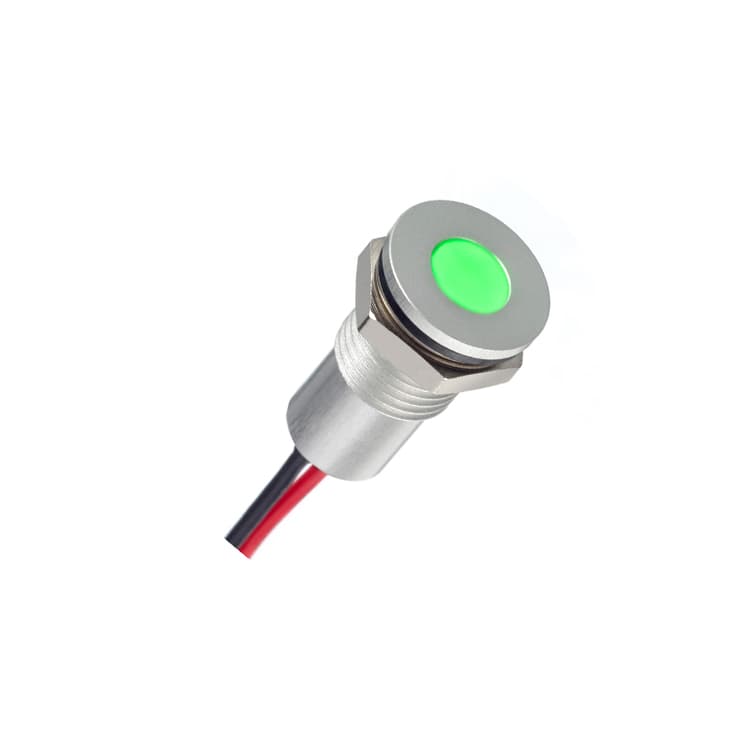

Panel mount LED indicators with 5 mm white diffused epoxy lens.


Main features

  • Natural or black anodized aluminum
  • Prominent and flush bezel styles
  • Voltage: 02(no resistor) - 28 VAC/DC
  • Terminals: 200mm long wires
  • IP67 sealing (EN60529)

Typical Applications


  • Telecom base stations
  • EV charging stations
  • Belly boxes
  • Remote controls
  • AGVs
Product detail
Product detail

Key Features

• Max Reverse Voltage: 5 V • Viewing Angle: 30–100° * • Life Expectancy: 100,000 hours • Temperature Range: –40 to +85 °C (–40 to +185 °F) • Torque: 20 to 25 cNm
69 Products
Filters
  1. image placeholder
    Q8 High Contrast
    Q8PANXXCR12AE
    • Sealing: IP67
    • LED Color : Red
    • Bezel Style: Prominent
  2. image placeholder
    Q8 High Contrast
    Q8PANXXCG02E
    • Sealing: IP67
    • Voltage: No Resistor
    • LED Color : Green
  3. image placeholder
    Q8 High Contrast
    Q8FANXXCG24AE
    • Sealing: IP67
    • Voltage: 24V AC/DC
    • LED Color : Green
  4. image placeholder
    Q8 High Contrast
    Q8PACXXCG24AE
    • Sealing: IP67
    • Voltage: 24V AC/DC
    • LED Color : Green
  5. image placeholder
    Q8 High Contrast
    Q8F5ACXXCB28AE
    • Sealing: IP67
    • Voltage: 28V DC
    • LED Color : Blue
  6. image placeholder
    Q8 High Contrast
    Q8PACXXCY24AE
    • Sealing: IP67
    • Voltage: 24V AC/DC
    • LED Color : Yellow
  7. image placeholder
    Q8 High Contrast
    Q8PACXXCR12AE
    • Sealing: IP67
    • LED Color : Red
    • Bezel Style: Prominent
  8. image placeholder
    Q8 High Contrast
    Q8FANXXCG02E
    • Sealing: IP67
    • Voltage: No Resistor
    • LED Color : Green
  9. image placeholder
    Q8 High Contrast
    Q8FANXXCB12AE
    • Sealing: IP67
    • LED Color : Blue
    • Bezel Style: Flush
  10. image placeholder
    Q8 High Contrast
    Q8FACXXCY12AE
    • Sealing: IP67
    • LED Color : Yellow
    • Bezel Style: Flush
  11. image placeholder
    Q8 High Contrast
    Q8P5ACXXCB12AE
    • Sealing: IP67
    • LED Color : Blue
    • Terminals: Rear Epoxy Wires
  12. image placeholder
    Q8 High Contrast
    Q8FACXXCG02E
    • Sealing: IP67
    • Voltage: No Resistor
    • LED Color : Green

Showing 1~ 12 of 69 Products

...
