Q14P2BXXG02E

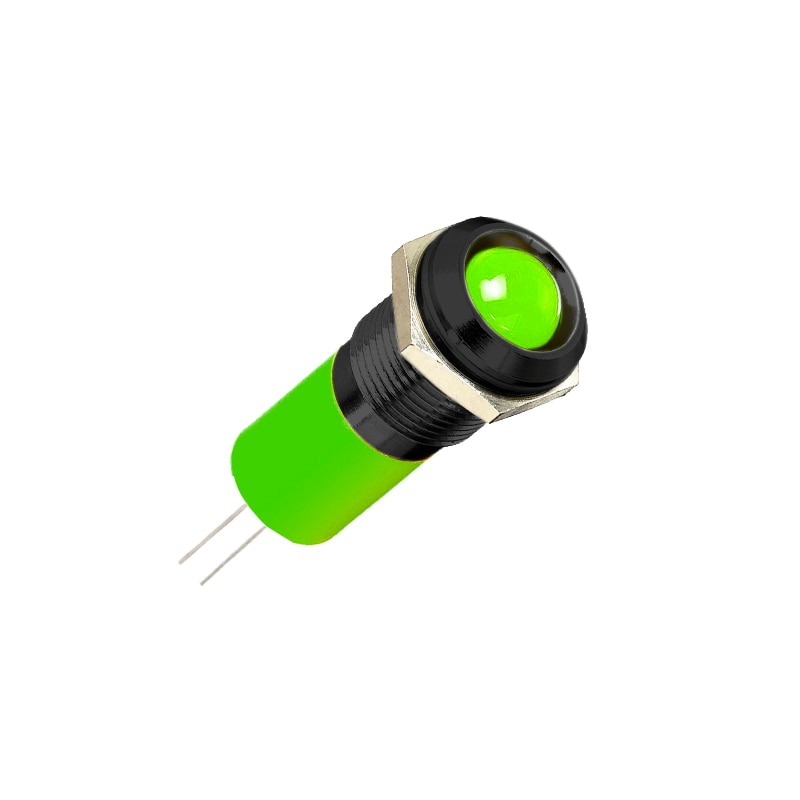

The Q14P2BXXG02E LED Indicator is a versatile and reliable solution for various applications. With a 14mm mounting hole, it can easily fit into any compatible panel. The prominent bezel style adds a touch of modernity and sophistication to your device. The indicator comes with pins for easy and secure connection. Its sleek black bezel finish enhances its aesthetic appeal. The fixed green light illumination ensures clear visibility in any environment. With a no-resistor voltage requirement, it simplifies the installation process. Moreover, its IP67 sealing guarantees protection against dust and water, making it suitable for both indoor and outdoor use.

Key Features
- Mounting Hole: 14mm
- LED Color: Green
- Voltage: No Resistor
- Sealing: IP67
- Terminals: Pins
- Bezel Finish: Black
- Type Of Illumination: Fixed Light
- Bezel Style: Prominent
Specifications
Distinctive Features:
- 10 mm colored diffused epoxy lens or 10 mm water clearsuper bright LEDs
- Prominent and flush bezel styles(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
- Custom engraving available
- Available in RGB
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Torque: 75 cNm
Environmental Specifications:
- Panel sealed up to IP67 according to EN60529
- Temperature Range: –40 to +85 °C (operation & storage)
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6VDC 20mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20mA
- 110 VAC 99 to 121 VAC 6 m A
- 220 VAC 207 to 235 VAC 3 mA
