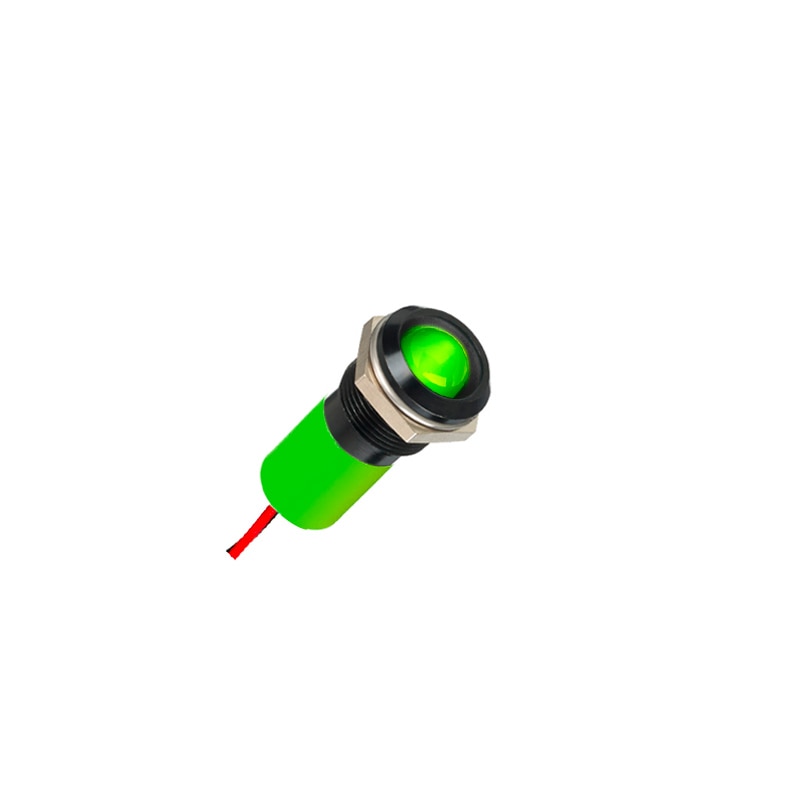

Q12P3BXXSG28E
Introducing the Q12P3BXXSG28E LED Indicator, a versatile and reliable solution for all your illumination needs. With its 12 mm Mounting Hole, this indicator is easy to install and fits seamlessly into any project. The Prominent Bezel Style adds a touch of sophistication to your design, while the Black Bezel Finish complements any color scheme. Featuring Wires Terminals, this indicator ensures a secure and hassle-free connection. Its Fixed Light illumination type provides a steady and consistent glow, and the Super Bright Green LED color guarantees clear visibility. Operating at 28 VDC, this indicator offers powerful and efficient performance. With its IP67 sealing, it is resistant to dust and water, making it suitable for a wide range of applications. Upgrade your projects with the Q12P3BXXSG28E LED Indicator and experience illumination at its finest.
Key Features
- Voltage: 28 VDC
- Type Of Illumination: Fixed Light
- Mounting Hole: Ø12 mm
- Terminals: Wires
- Led Color: Super Bright Green
- Bezel Style: Prominent
- Series: Q
- Sealing: IP67
- Bezel Finish: Black
Specifications
Distinctive Features:
- 8 mm colored diffused epoxy lens or 8 mm water clearsuper bright LEDs2VDC - 220VAC(2.8 x 0.8) solder lug/faston terminals, pins or (200 mm long)wire terminations
General Specifications:
- Max Reverse Voltage: 5 V
- Viewing Angle: 30–100° *
- Life Expectancy: 100,000 hours
- Temperature Range: –40 to +85 °C *
- Torque: 75 cNm* Dependant on Model
Environmental Specifications:
- Panel sealed up to IP67 according to EN 60529
Electrical Specifications:
- 02 (No Resistor) 1.8 to 3.3 VDC 20 mA max
- 6 VDC 5.4 to 6.6 VDC 20 mA
- 12 VDC 10.8 to 13.2 VDC 20 mA
- 24 VDC 21.6 to 26.4 VDC 20 mA
- 28 VDC 25.2 to 30.8 VDC 20 mA
- 110 VAC 99 to 121 VAC 6 mA
- 220 VAC 207 to 235 VAC 3 mA
